Industrial Wet Scrubber Tower SO2 CO2 NH3 Waste Gas Purifier Equipment Treatment

Brand Name:	BIOCLEAN
Model Number:	BCWGT-04WST
MOQ:	1
Price:	20000-30000USD
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	1000 Units per year

Detail Information

Product Description

Detail Information

Place of Origin:

NINGBO CHINA

Certification:

CE-EP-2022-53578

Noise Level:

55-65 DB(A)

Power Consumption:

2-5 KW

Applicable Gas Type:

Organic Waste Gas (VOCs)

Pre-Treatment Module:

Cyclone Dust Collector

Deodorization Effect:

Odor Concentration ≤200

Overall Dimension (L×W×H):

800×350×450 Cm

Packaging Details:

Custom steel frame crating

Supply Ability:

1000 Units per year

Highlight:

Waste Gas Purifier Equipment

NH3 Waste Gas Purifier

Waste Gas Purifier Equipment Treatment

Product Description

Product descriptions

Industrial Wet Scrubber Tower: Specialized for SO₂, CO₂, NH₃ Waste Gas Purification

Our Industrial Wet Scrubber Tower is engineered to deliver exceptional purification performance for SO₂ (sulfur dioxide), CO₂ (carbon dioxide), and NH₃ (ammonia) — three critical pollutants in industrial emissions.

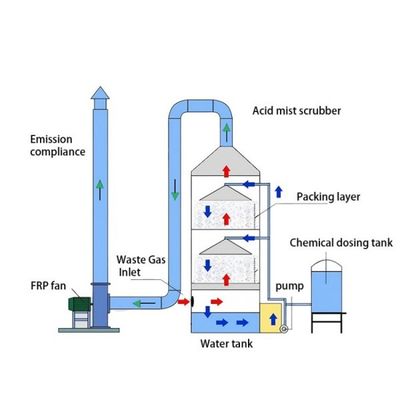

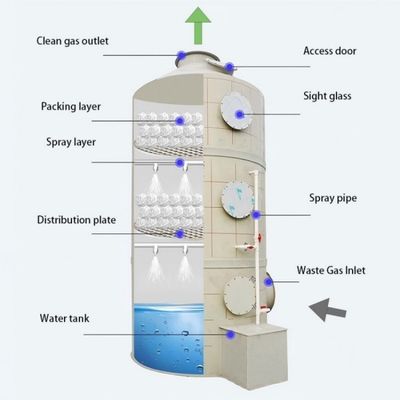

Operating on a proven gas-liquid contact principle, the system draws waste gas into the purification tower via ductwork, guiding it through a high-efficiency packing layer. Here, the gas stream (rich in SO₂, CO₂, and NH₃) undergoes intensive contact with a tailored absorption liquid. This deliberate interaction triggers targeted neutralization and absorption reactions: SO₂ is effectively stripped via alkaline absorption, CO₂ is captured through optimized liquid solubility, and NH₃ is neutralized to minimize its pungent, corrosive impact.

Post-reaction, the purified gas passes through a demisting plate and mist eliminator to remove residual moisture, ensuring clean, dry emissions before being safely discharged into the atmosphere by an integrated fan. The absorption liquid, after completing its cycle, is recirculated — pumped from the tower base to the top for re-spraying, creating a closed-loop system that reduces operational costs while maintaining consistent treatment efficacy.

With this design, our wet scrubber achieves remarkable removal efficiencies for SO₂, CO₂, and NH₃, guaranteeing that purified exhaust gas meets or exceeds national emission standards. It’s a reliable, cost-effective solution for industries seeking to mitigate harmful gas emissions and ensure environmental compliance.

PRODUCT SPECIFICATIONS

Model	Air volume( m3/h)	Diameter*height (mm)	Tank size(mm)	Pump power(kw)	Inlet/outletmm
BCWGT-04WST800	3000	φ800*3600	500400450	1.5	Φ315
BCWGT-04WST1200	3000	φ1200*2500	500400450	1.5	Φ315
BCWGT-04WST900	4000	φ900*3600	500400450	1.5	Φ315
BCWGT-04WST1000	5000	φ1000*3600	600400450	1.5	Φ400
BCWGT-04WST1200	5000	φ1200*3500	600400450	2.2	Φ400
BCWGT-04WST1100	6500	φ1100*3800	600400450	2.2	Φ400
BCWGT-04WST1200	8000	φ1200*4200	600400450	2.2	Φ450
BCWGT-04WST1400	10000	φ1400*4200	600400450	2.2	Φ500
BCWGT-04WST1500	10000	φ1500*3500	600400450	2.2	Φ500
BCWGT-04WST1500	13000	φ1500*4200	600400450	3	Φ500
BCWGT-04WST1650	15000	φ1650*4500	600500450	3	Φ600
BCWGT-04WST1800	18000	φ1800*4500	600500450	5.5	Φ650
BCWGT-04WST2000	20000	φ2000*4500	700500500	5.5	Φ700
BCWGT-04WST2200	22000	φ2200*4500	800600500	7.5	Φ800
BCWGT-04WST2500	30000	φ2500*5000	800600500	7.5	Φ800

Product Overview

Industrial Wet Scrubber Tower SO2 CO2 NH3 Waste Gas Purifier Equipment Treatment 0

Industrial Wet Scrubber Tower SO2 CO2 NH3 Waste Gas Purifier Equipment Treatment 1

Industrial Wet Scrubber Tower SO2 CO2 NH3 Waste Gas Purifier Equipment Treatment 2

Industrial Wet Scrubber Tower SO2 CO2 NH3 Waste Gas Purifier Equipment Treatment 3

Industrial Wet Scrubber Tower SO2 CO2 NH3 Waste Gas Purifier Equipment Treatment 4

Industrial Wet Scrubber Tower SO2 CO2 NH3 Waste Gas Purifier Equipment Treatment 5

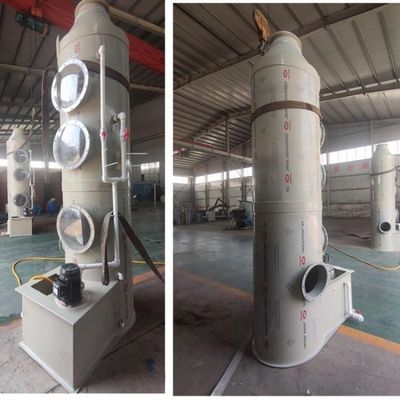

Physical Product Photos

Industrial Wet Scrubber Tower SO2 CO2 NH3 Waste Gas Purifier Equipment Treatment 6
