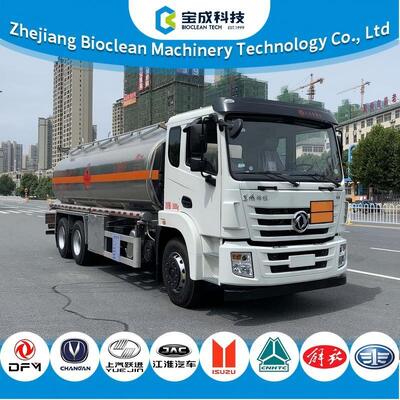

Heavy-Duty 6x4 19000L Fuel Delivery Tank Truck for Transport oil tanker truck

This vehicle is a dangerous goods vehicle. The vehicle type for dangerous goods transportation is FL-type. Maximum allowable density of transported medium (kg/m³): 840. Total tank volume: 19.15 m³. Effective tank volume: 19.04 m³. Tank dimensions (length × major axis × minor axis) (mm): 6820×2260×1580.

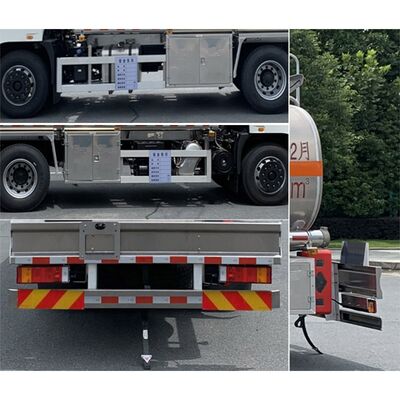

Both side and rear protective guards are made of aluminum alloy and connected by bolts. Cross-section dimension of rear protective guard (mm): 140×50. Ground clearance of rear protective guard: 410 mm.
EBS Model / Manufacturer: EBS5 / Dongke Knorr Commercial Vehicle Brake System (Shiyan) Co., Ltd.

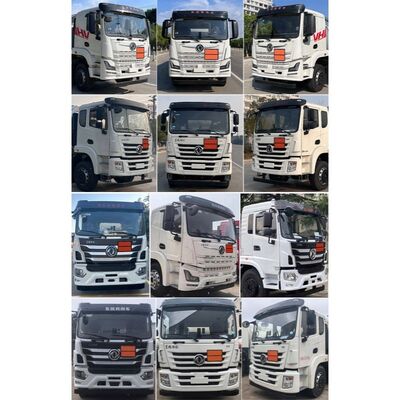

Only chassis with wheelbase (mm) of 4350+1350 and 4600+1350 are acceptable. Cab is optional as per chassis configuration. Only radial tyres shall be adopted. Speed-limiting device is installed with maximum speed limited to 80 km/h. Exhaust pipe is front-mounted and front-wheel disc brakes are equipped. A tachograph with satellite positioning function is fitted. Rear axles are equipped with air suspension, and steering wheels are fitted with tyre burst emergency protection devices.
On-board ETC device is optional.
Engine models and corresponding fuel consumption values (L/100 km):
YCS06270-60 (31.2),
WP7.300E61 (36.2),
YCS06300-61 (29.08),
YCS07350-66 (27.26),
YCS07L300-66 (27.26),
YCS07L270-66 (27.26).

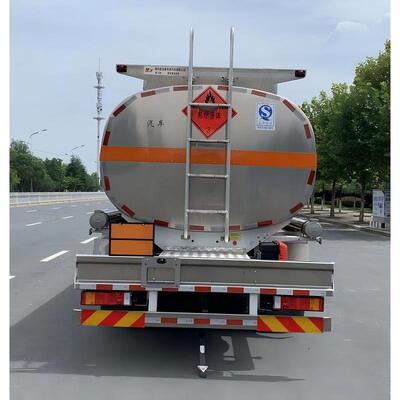

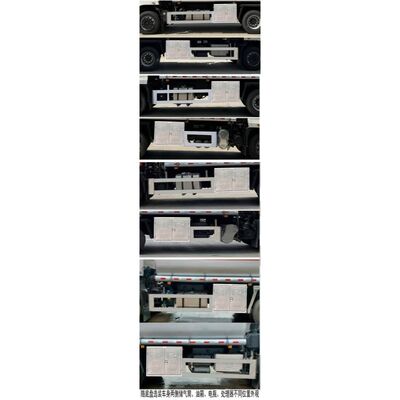

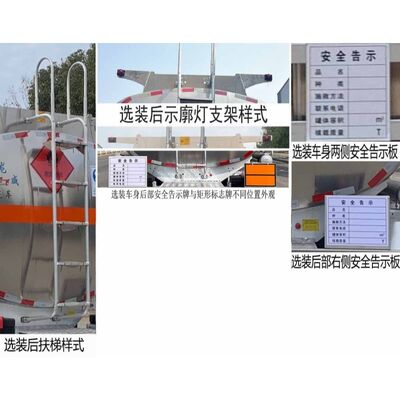

Optional equipment: different styles of rear access ladder; safety notice boards on both sides of vehicle body; safety notice board at rear right side; different styles of rear marker lamp bracket; alternative layout appearances of air reservoirs, fuel tank, battery and processor on both sides of vehicle body (following chassis options); alternative position appearances of rear safety notice board and rectangular sign plate at vehicle rear.
