| Brand Name: | Bioclean |
| Model Number: | ZBJ-YX-5C |
| MOQ: | 1 |
| Price: | 600 USD |
| Payment Terms: | T/T |
| Supply Ability: | 100unit/year |
| Product Name | ZBJ-YX-5C (Four-Wheel New 5C Self-Dumping Pure Suction Sweeper) | |||
| Rated Occupants | 2 person | |||
| Important Dimensions | Overall Dimensions (L × W × H) | 4500*2500*2400 | ||
| Wheelbase | 140mm | |||
| Wheel Track | 1910mm | |||
| Ground Clearance | 130mm | |||
| Quality Parameters | Net Weight | 1700KG | ||
| Vehicle Performance | Maximum Speed | 16km/h | Working Speed | 10km/h |
| Minimum Turning Radius | 4.6m | Front Brush Diameter | 700mm | |
| Max Hill Climb | ≤ 25° | Middle Brush Diameter | 700mm | |
| Operating Time | 3-5 H | Full Load Working Time | ≥ 3 H | |
| Water Tank | 160L | Garbage Bin | 1200L | |
| Sweeping Width | 2500mm | Max Hopper Dump Height | 2500mm | |
| Electric Control System | Drive Electric Control | 60V 5000W DC Controller | ||
| Battery | 60V 300Ah Lithium Battery (Dual/Quad Battery Packs Optional) | |||
| Drive Motor | 60V 5000W DC Motor | |||
| Charger | Portable Intelligent Charger | |||
| Charging Time | 6-8 Hours Charging Time | |||
| Vehicle Configuration | Cabin | Sealed Steel Frame Cab, Glass Door, Electronic Display, Reverse Image, Fan (Heating/Cooling Optional) | ||
| Seat | Main/Sub Independent Seats (Leather Cushion & Backrest) | |||
| Rearview Mirror | Wide-Field Blind-Spot Mirror + Front Brush Observation Mirror | |||
| Lights and Signals | Warning Light + LED Dome Light + LED Side Lights + LED Turn Signals + LED Headlights + Tail Lights + Reverse Prompt | |||
| Suction Cup Width | 900mm | |||
| Fan | DC Brushless Fan 60V 5000W | |||
| HighPressure Cleaning System | High-Pressure Pump | 1500W | ||

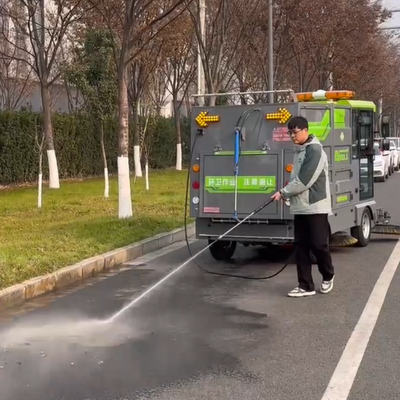

| Handheld High-Pressure Water Gun | 1 unit (including 0°, 15°, 25°) | |||
| High-Pressure Hose Reel | 10 meters | |||
| Bottom Flush | 1400mm Multi-Hole Water Spraying | |||
| Chassis | Tires | 185R14LT | ||
| Steering Type | Manual Steering with Electric Assist | |||
| Braking System | Hydraulic Drum Brakes (Front/Rear) + Handbrake | |||
| Body Color | Dark Grey (Customizable Logo) | |||
| Body Color | Dark Grey (Customizable Logo) | |||
Functional Features
The body is designed with a streamlined shape and tempered glass.

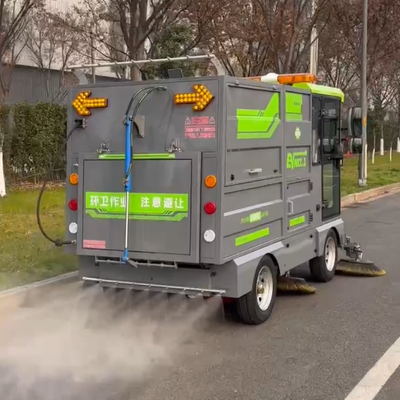

A spray nozzle is located at the upper rear of the vehicle body, providing water spraying for dust suppression on the working surface.
Equipped with vacuum tires for wear resistance and long service life.
The vehicle body is coated with high-temperature metallic paint and features corrosion-resistant materials such as electrophoresis and spray coating for rust prevention.
