| Brand Name: | Bioclean |
| Model Number: | ZBJ5140GLQ6BLS |
| MOQ: | 1 |
| Price: | 7999 USD |
| Payment Terms: | T/T |
| Supply Ability: | 100unit/year |
|
|
|
|
|
|
Tank Volume (L)
|
8000 L
|
Gross Vehicle Weight (kg)
|
14060 kg
|
|
Rated Load (kg)
|
6465 kg
|
Curb Weight (kg)
|
7700 kg
|
|
Tank Material
|
High-quality Q235 Carbon Steel
|
Insulation Layer
|
Rock Wool
|
|
Tank Surface Material
|
Stainless Steel
|
Overall Dimensions (mm)
|
7450 × 2380 × 2950 mm
|
|
Filter Screen
|
Custom-made
|
Heat Transfer Oil Pump
|
RY40-25-160
|
|
Proportional Valve
|
EFRD-G03-160-3-6-31
|
|
|
|
Speed Sensor
|
Shanghai Shuangfu
|
Hydraulic Motor
|
TAKS05-110BD40
|
|
Pneumatic Butterfly Valve
|
HLD3H3-16C
|
Fluid Control Valve
|
STNC, TVW-15
|
|
Generator
|
7kW Gasoline Generator
|
Operation Mode
|
In-cab Control
|
|
Asphalt Pump
|
RCB38/0.6-65F
|
Asphalt Pump Speed
|
Adjustable from the cab
|
|
Asphalt Pump Flow Rate
|
38 m³/min
|

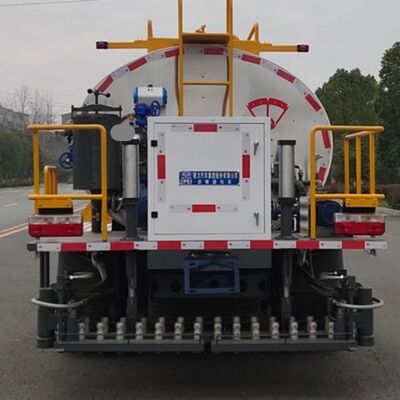

Rear Nozzles
|
34 Pneumatic Asphalt Nozzles
|
|
Nozzle Control Mode
|
One-to-one Control
|
Asphalt Spray Rate
|
0.25–3 L/m²
|
|
Spray Media
|
Emulsified Asphalt, Hot Asphalt, SBS Modified Asphalt
|
Heat Transfer Oil System
|
With Circulation Heating Function
|
|
Spray Width (m)
|
≤ 4.5 m
|
Burner
|
G20
|
|
Spraying Area Calculation
|
Spraying Area = Tank Volume ÷ Spray Rate
|
|
|
|
Cleaning Method
|
Built-in Pneumatic Cleaning or Diesel Cleaning
|
|
|
