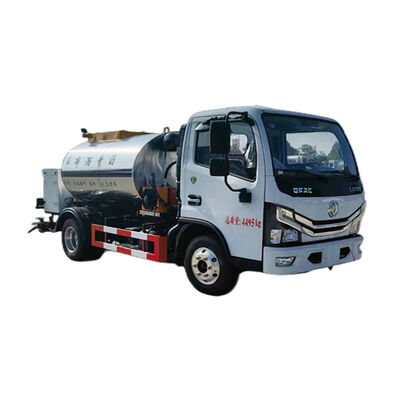

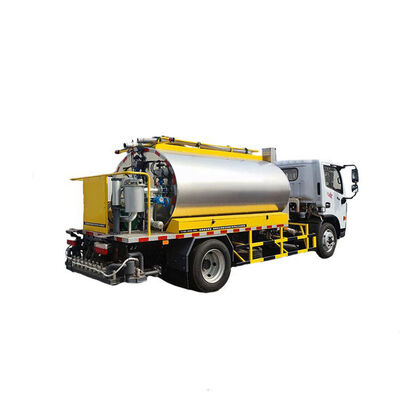

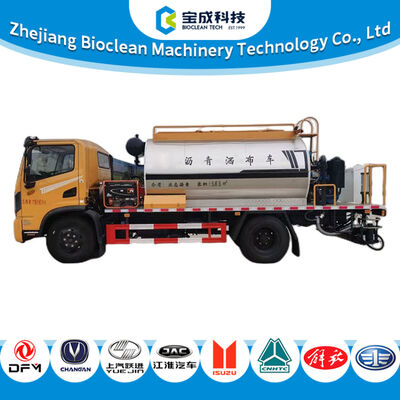

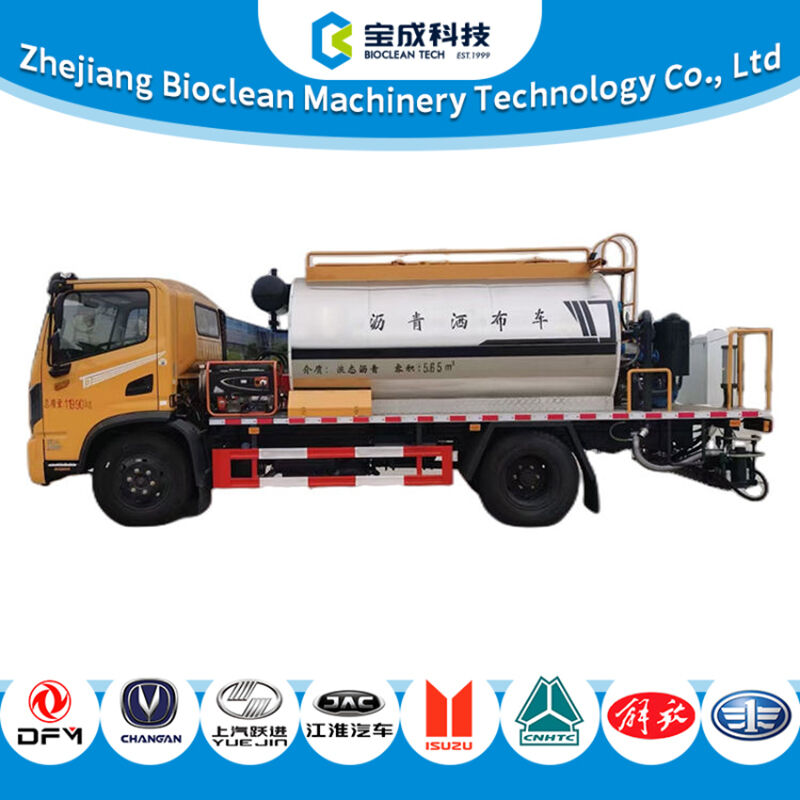

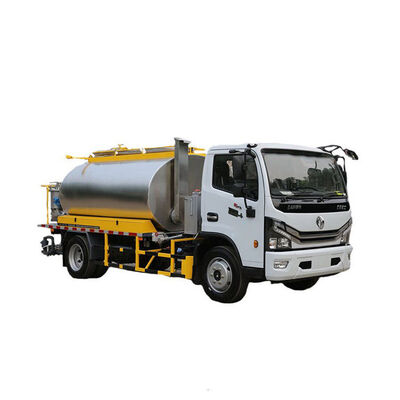

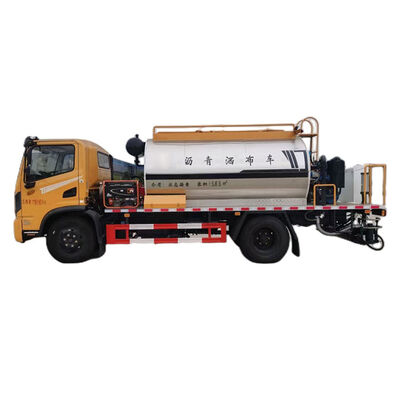

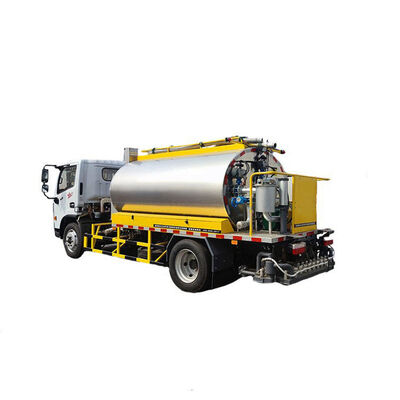

The standard asphalt spreading truck is a professional spreader of emulsified asphalt, diluted asphalt, hot asphalt,Semi-intelligent technology products for high viscosity modified asphalt. Used to build high-grade highway asphalt pavements Spread the bottom layer of oil, waterproof layer and adhesive layer. The spreader truck consists of a car chassis, asphalt Tanks, asphalt pumping and spraying systems, hydraulic systems, combustion and thermal oil heating systems, control. It consists of control system, pneumatic system and operating platform. The vehicle is easy to operate and has attracted the attention of colleagues at home and abroad. On the basis of various technologies of this type of products, it has added the technical content to ensure the quality of construction and highlighted improvements. Improve the humanized design of construction conditions and construction environment. Its reasonable and reliable design ensures that asphalt The sprinkling uniformity is excellent, and the technical performance of the entire vehicle has reached the world's advanced level.If you want to know more about   Asphalt distributor Truck, please contact us now!

name	Model and specification
Chassis model	EQ1165LJ9CDE
Chassis name	D9
wheel base	3950mm
Engine type	YCY30165-60
Engine horsepower	YUCHAI 165 horsepower
Engine displacement	2970ml
Tyre size	9.0R20-16
Number of tires	6 + 1
Fuel types	Diesel
Fuel tank capacity	160 (L)
Gear-box	8 transmissions
Maximum speed	105 (km/h)

If you want to know more about Asphalt distributor Truck, please contact us now! 1. The vehicle adopts Dongfeng chassis, which has excellent and powerful load-bearing capacity, flexible and light maneuverability. The beautiful and elegant appearance provides safe, efficient and reliable transportation for the vast number of intercity logistics customers. Service: According to the needs of spraying volume and working width, the asphalt spreading volume can be set by yourself; 2. The asphalt spreading control is completed in the cab (the backup operating platform at the rear can also be completed into), it can realize one-to-one control of the tail nozzle, thereby realizing arbitrary adjustment of spraying width. Convenient for one driver to operate; 3. Heating method: diesel burner (Riello, Italy) for heating and thermal oil circulation temperature, it will automatically shut down after the temperature reaches the set value; 4. Using the internationally advanced high-viscosity asphalt pump, external asphalt can be pumped into the tank to achieve "Self-priming" can also pump out the asphalt in the tank; 5. The asphalt spraying pole adopts a three-section folding structure, which can be adjusted up and down and unfolded left and right for spraying.The cloth pole expands the spreading range and can effectively avoid obstacles.
