| Brand Name: | BIOCLEAN |
| Model Number: | BCFT-RTD80CB |
| MOQ: | 1 |
| Price: | 8000-15000 USD |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Supply Ability: | 10000 Units per year |
| Tare Weight | 8.8Tons (depends on final configuration) |
| Payload | 30 tons or cutomizable |
| Size | 13600x2600x4000mm (customizable) |
| Inside size | 13280x2440x2547mm (customization) |
| Main Beam | Q345B/T700 steel |
| Height 500mm | |
| Upper Plate is 14mm | |
| Down plate is 16mm | |
| Middle plate is 8mm or customization | |
| Side Beam | 12mm channel steel ( material is q235b steel) |

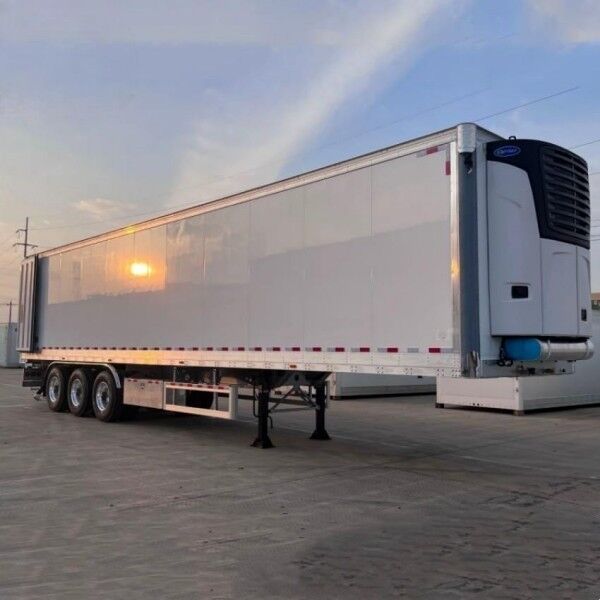

| Refrigerator | Carrier x 4 7300 |
| Tank Thickness | 5/7mm (customization) |
| Axles | 13/16/20 tons, axle amount optional like 2/3/4 axles etc, axle brand optional like SAF, FUWA, BPW etc |
| King pin | 2.00"(50#), bolting king pin, JOST or another brand according to customer |
| Suspension | Mechanical suspension air suspension (American or Geman) |
| Leaf Spring | 10pcs leaf spring, thickness 13mm. width 90mm |
| Landing Gear | 28 Tons heavy duty, brand optional fuwa /jost etc |
| Tire specs | 12R22.5/315 80R22.5/11R20/12R20 Choose freely |
| Braking system | dual line brake system , Air chamber T30/30 3X40L gas storage drums |
| Rim | 9.00-22.5 /8.00-20/8.5-20 |
| ABS system | None or installed as your requirement. |
| Painting | Sanding , anti-corrosion , one primer paining add two layer top coat painting |
| Side Gurd | According to customer |
| Electrical system | 24 volt electrical system 7 pin electrical connector, Parking stop, reverse, number plate and indicator lights, rear lights conform to european standard, rear front and side reflectors |
| spare tire | Two set of heavy duty spare wheel carriers, indluding a riser |
| Tool Box | One Piece (1.0 x 5.0 m) with 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar |
| Color | According to customers requirements |
| Delivery | From China Port and carry by container ship, ro-ro ship or by bulk |
| Remark | Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects |
