| Brand Name: | BIOCLEAN |
| Model Number: | BCADT-8000 |
| MOQ: | 1 |
| Price: | 5000-10000 USD |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Supply Ability: | 10000 Units per year |
| Chassis Model | DFL1160BX1V |
| Engine Model | ISB180 30 |
| Vehicle Size | 8790*2480*2840 |
| Asphalt tank capacity | 10000l (three layer insulation tank) |
| Spread width | 4500mm or 6000mm |
| Asphalt distribution | 0.25～3L/m2 |
| Spread error | ±2% |
| Number and control mode of nozzles | 34 intelligent nozzles |
| Heating mode | Heating by diesel burner imported from Italy (200000 kcal / h) |
| Spraying medium | Hot asphalt, dilution asphalt, emulsified asphalt, modified asphalt, etc |
| Hydraulic pump | QGB950-L |
| Proportional valve | EFBG-05-110 |
| Asphalt pump | Shanggui qgb680 (maximum displacement 680l / min) |
| Hydraulic drive motor of asphalt pump | 05-110-bd31 (Ningbo thalamus) |
Cylinder nozzle of asphalt distributorThe asphalt distributor’s cylinder nozzle features a smart protection mechanism: diesel flushing and high-pressure air purging prevent bitumen solidification inside the nozzle. This innovative design significantly extends the nozzle’s service life, reducing replacement frequency and maintenance costs while ensuring consistent spraying performance.
|
Indoor operation control systemThe equipment integrates an indoor operation control system, designed for intuitive operation that streamlines workflows and cuts labor expenses. This user-friendly setup minimizes training requirements, enabling operators to manage asphalt distribution tasks efficiently with minimal effort, boosting overall construction productivity.
|

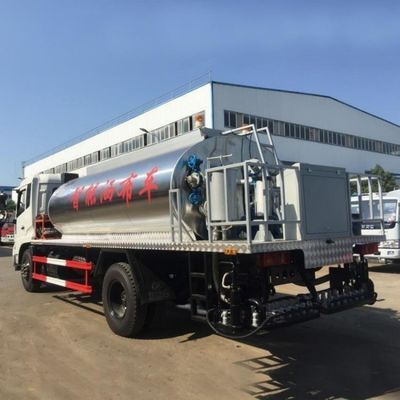

Asphalt spraying rod adoptsThe asphalt spraying rod employs a three-stage folding structure for versatile operation. Vertical adjustment of the rod enables double or multiple spraying modes, while horizontal movement expands the spraying coverage. It also effectively navigates obstacles on job sites, enhancing adaptability to diverse construction scenarios.
|

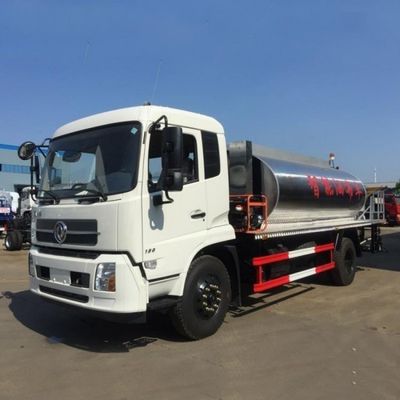

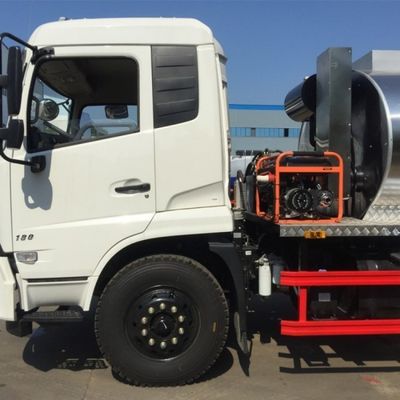

Cab ControlThe vehicle is built on the Dongfeng Tianjin luxury chassis, delivering exceptional load-bearing capacity, agile handling, and a sleek, modern appearance. This robust foundation ensures safe, efficient, and reliable service for inter-city logistics and road construction clients, meeting the demands of high-intensity operational environments.
|
