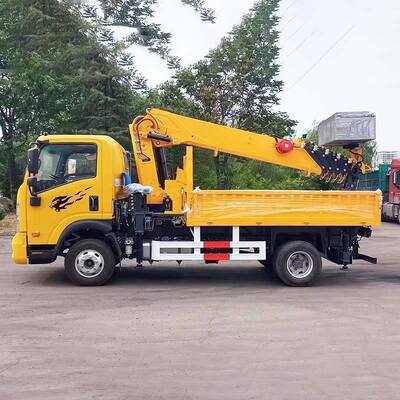

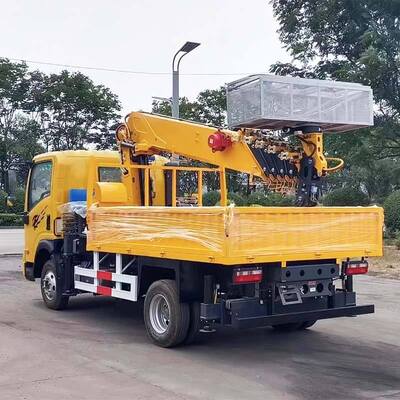

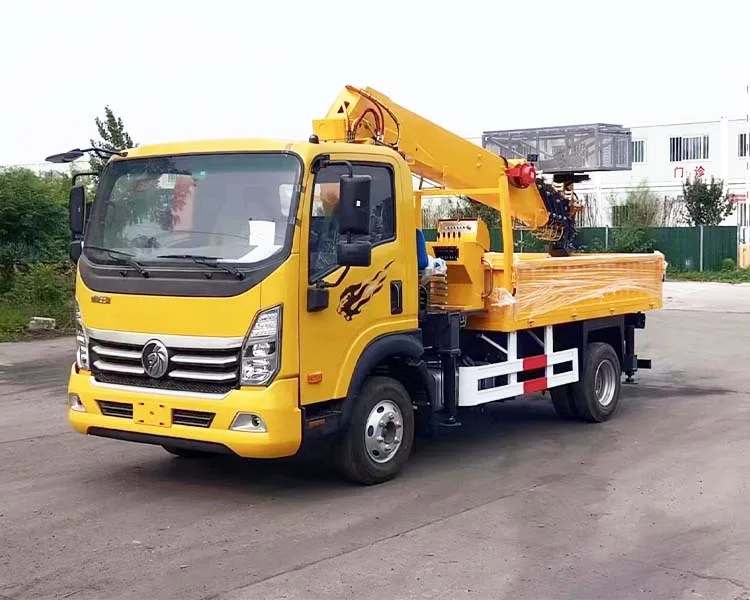

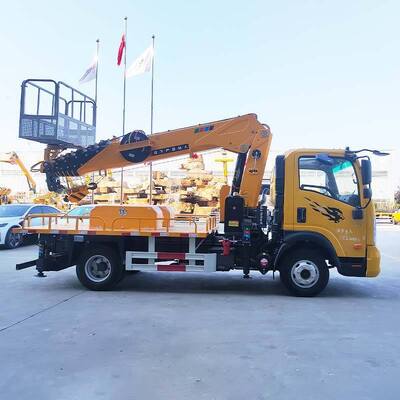

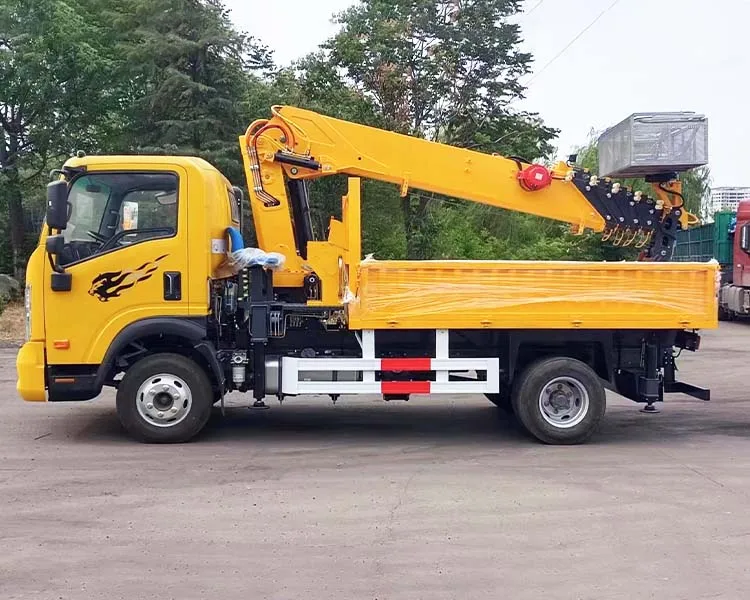

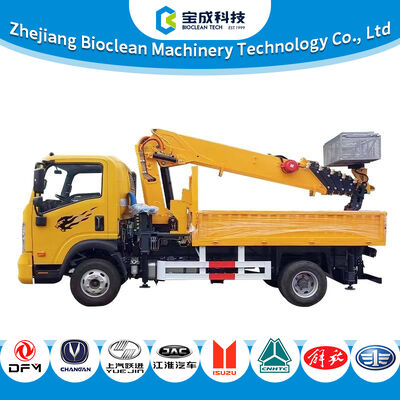

Multi-purpose Construction Crane - 12-16 Ton Truck Crane CE Certified Utility Vehicle

Brand Name:	Bioclean
Model Number:	ZBJSCQZC002
MOQ:	1pc
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Highlight:

16 Ton Truck Crane

Multi Purpose Truck Crane

CE Certified Truck Crane

Product Description

Key attributes

High-altitude work platform
Maximum homework height	27 meters	Chassis	Foton Oumako
Maximum homework range	14.6 meters	Engine	Yunnei 122 horsepower
Rated load of work platform	200KG	Transmission case	Wanliyang 5th gear
Leg span (front V, rear H)	4295/4286mm (horizontal front/rear)	Tyre	650-16
Leg span (front V, rear H)	3995/3845mm (longitudinally forward/backward)	Wheelbase	3360mm
Rotating device	360 º infinite rotation hanging basket 360 º rotation	Axle load	1800/2695kg
Arm structure form	Four arm synchronous extension and contraction	Vehicle size	599520603200mm
Operation method	Turntable, remote control	Total quality	4495KG
Basket size	16007101000mm	Curb weight	4365KG
Number of passengers		2 people

Products Description

Multi-functional truck-mounted crane, integrating lifting and transportation. Equipped with a variety of booms, flexible operating radius, can lift different heavy objects. Convenient loading and unloading, can be driven in a variety of road conditions, widely used in engineering construction, logistics loading and unloading and other fields, greatly improving work efficiency.

Product Paramenters

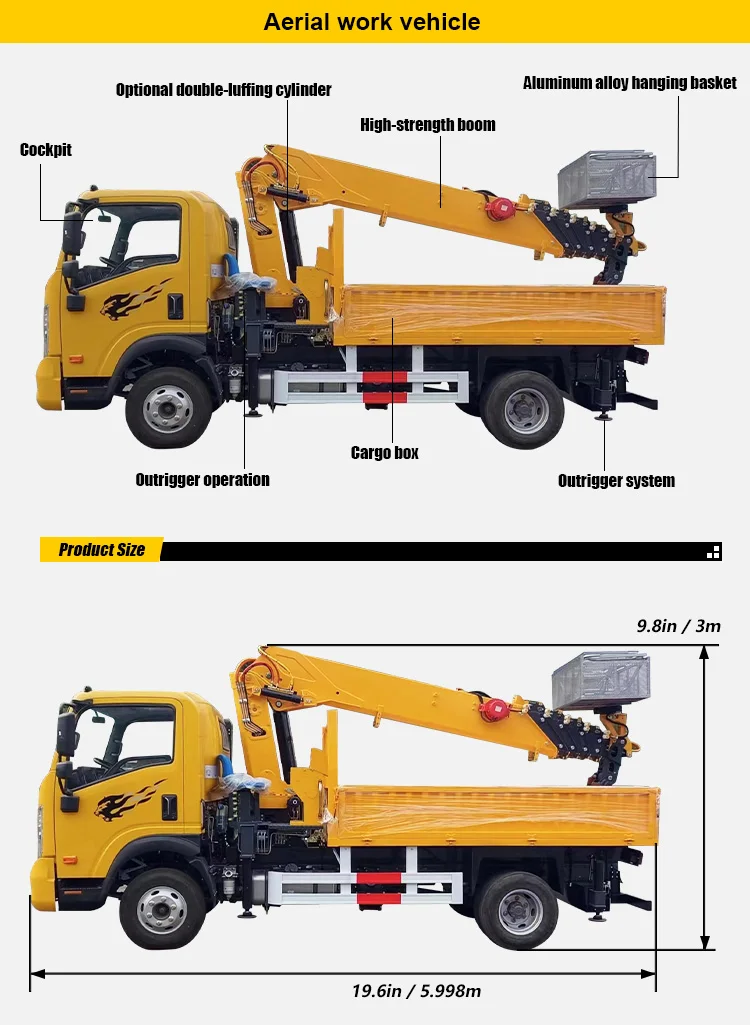

Details Images

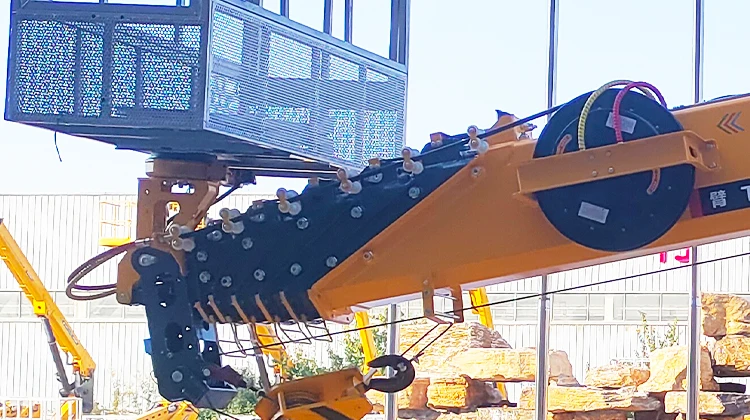

Seven-section synchronous telescopic arm

Adopt high-quality materials, high strength, flexible telescopic, easy to move up and down.

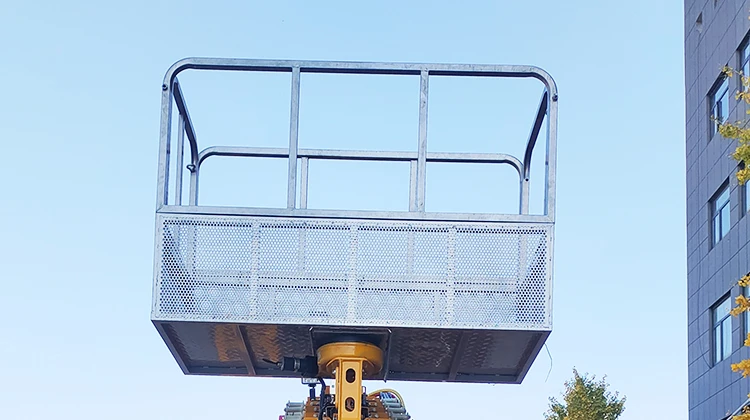

Remote control alloy hanging basket

The hanging basket can be flexibly rotated in all directions and can be wirelessly controlled.

360-degree rotation

The working platform and rotating device can rotate 360 ​​degrees.

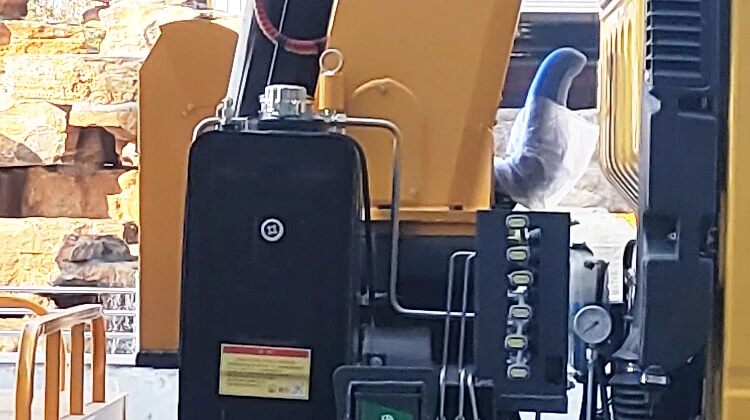

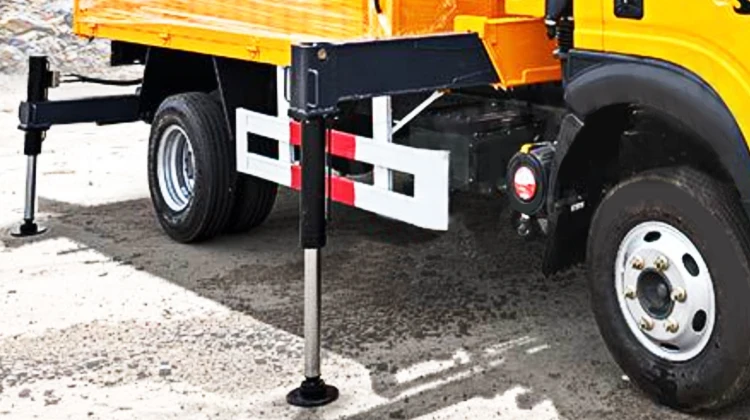

Large span hydraulic outriggers

X-shaped outriggers, stable center of gravity, fully hydraulic outriggers, individually adjustable.

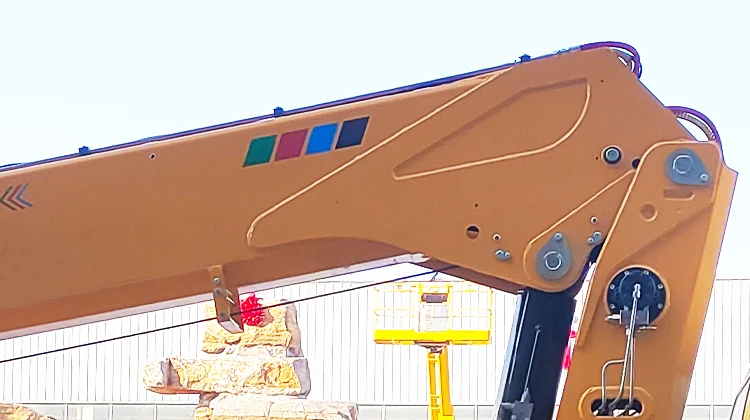

U-shaped Baosteel boom

Made of high-quality steel, the boom is strong and durable.

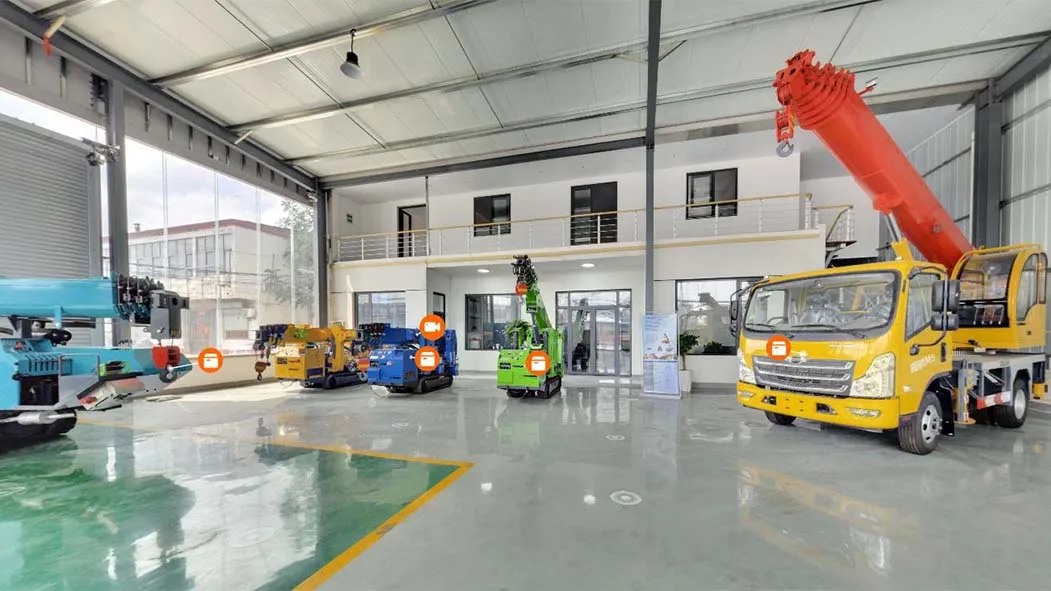

Exhibition

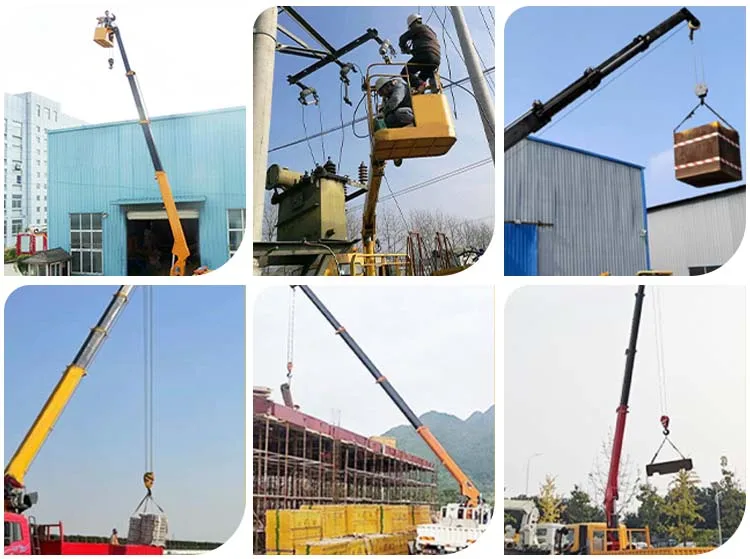

Product Application

For Municipal & Property Waste Disposal Docking Garbage Collection Truck 6
