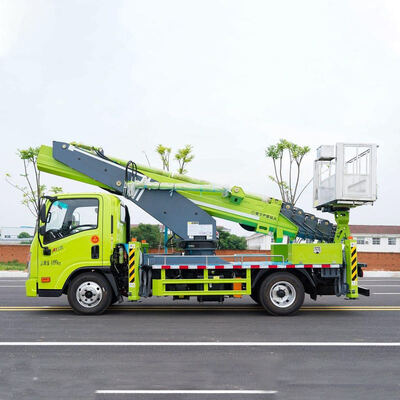

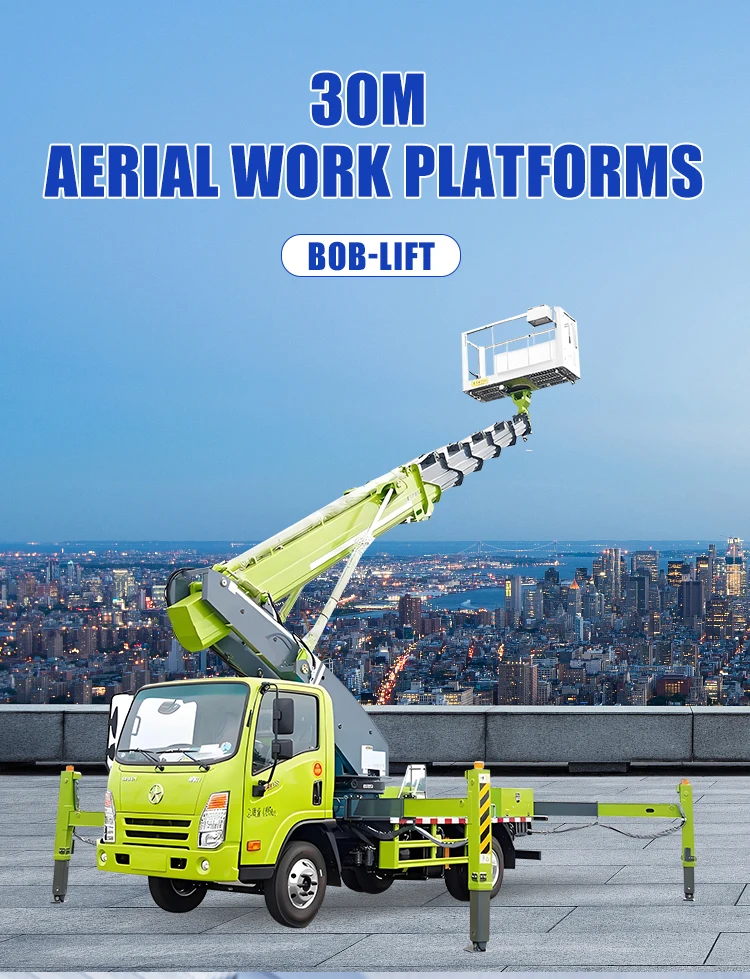

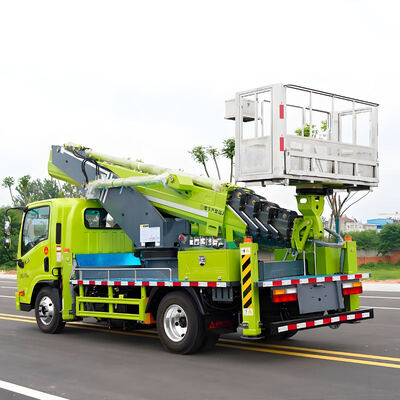

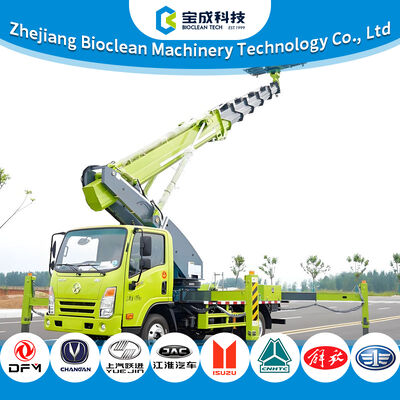

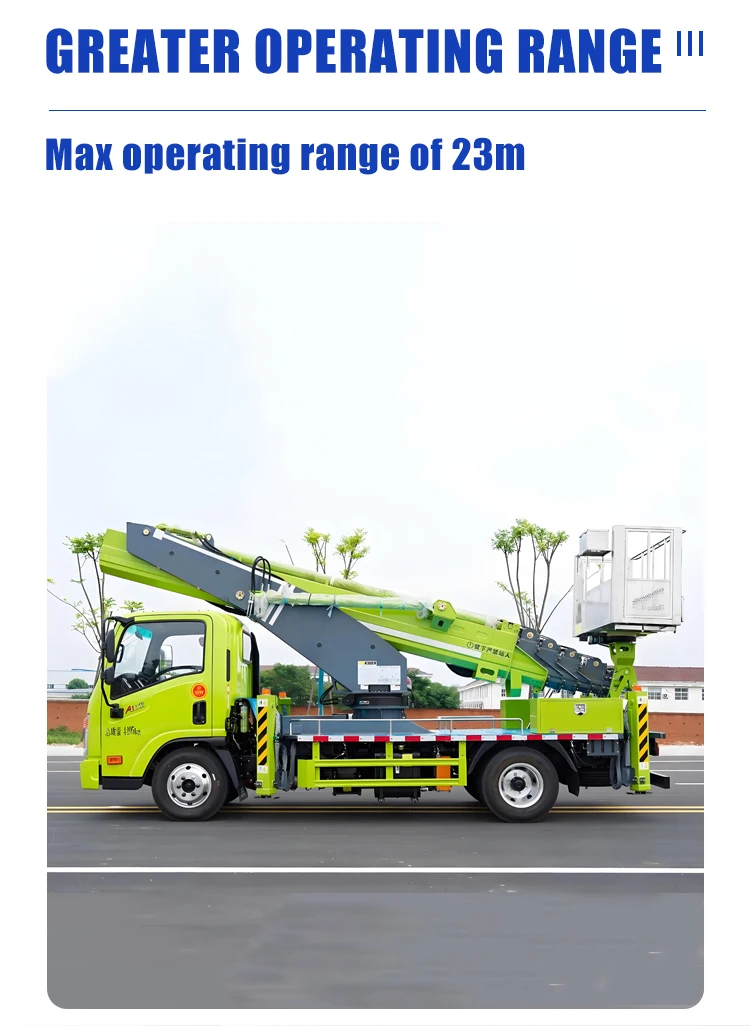

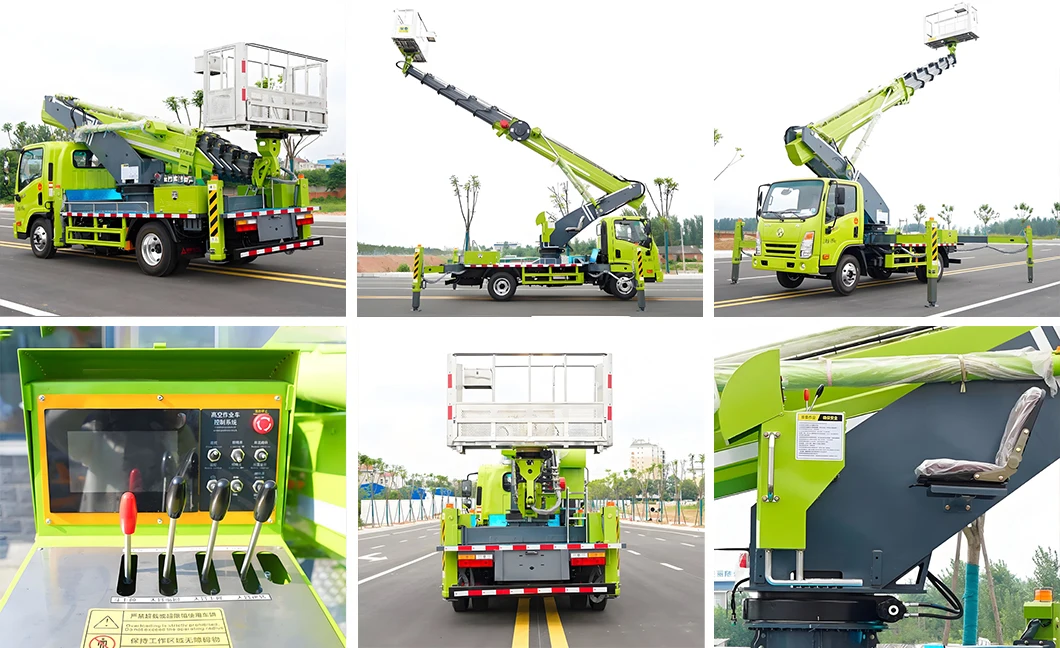

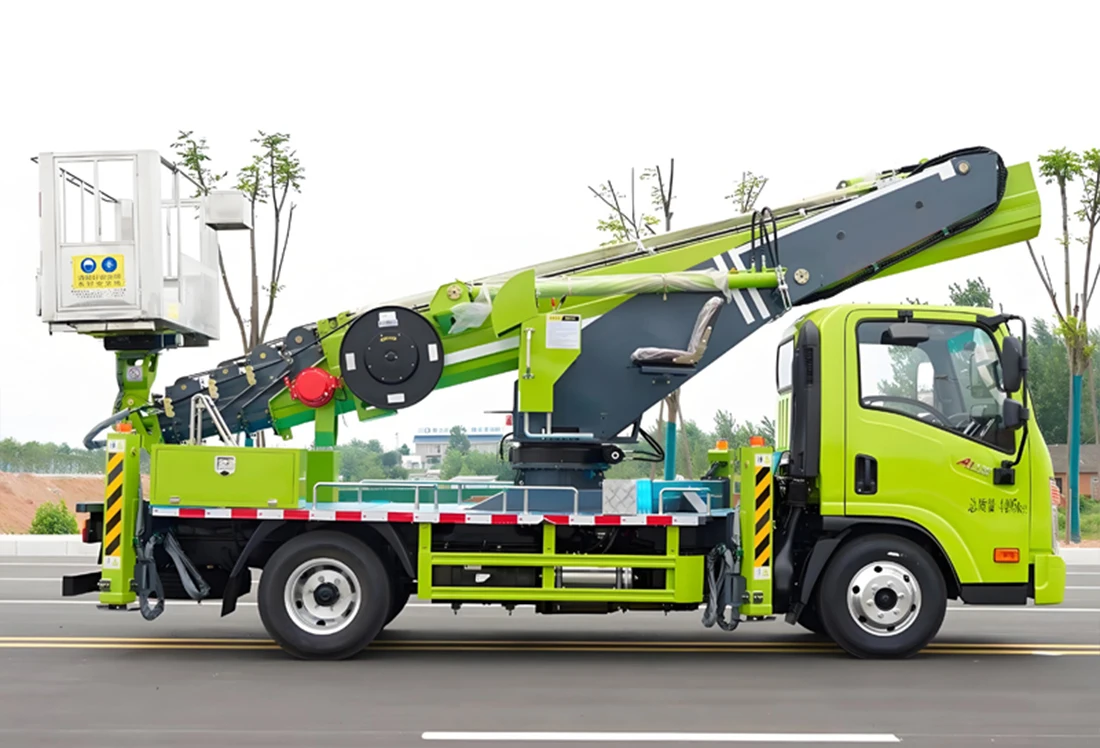

30m Aerial Platform Bucket Truck Manlift Lifting Platforms for High-Altitude Repairs and Construction

Brand Name:	Bioclean
Model Number:	ZBJ-GKS30
MOQ:	1 pc
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Highlight:

Manlift Lifting Platforms Bucket Truck

Construction Aerial Platform Bucket Truck

Product Description

Warning/Disclaimer

This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.

Technical Parameter

Main technical parameters
Maximum working height	30m
Total size	599520903160mm
Total mass	4495kg
Rated load of working platform	200kg

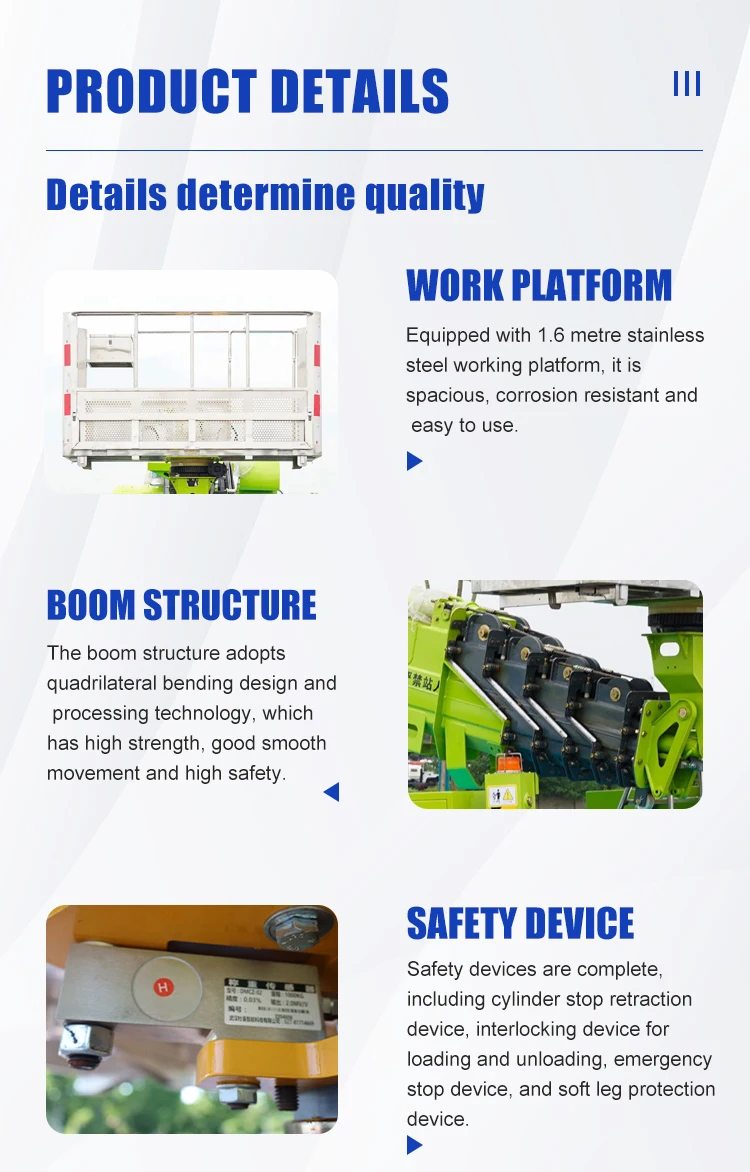

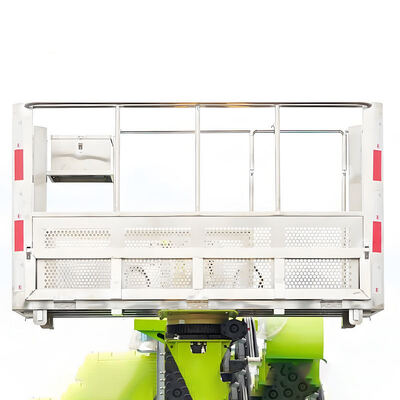

Working platform	16007001000mm
Leg span (lateral)	5400mm
Leg span (longitudinal)	5100mm
Boom form	Six-section fourteen-sided synchronous telescopic arm
Rotation device	360 degree
Maximum driving speed	90km/h

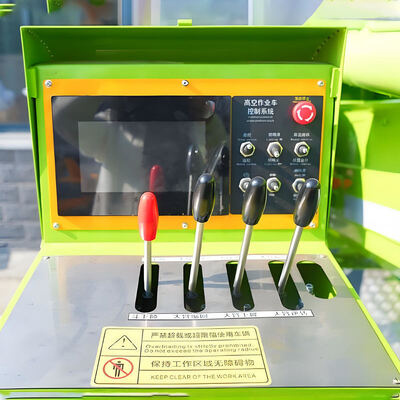

Operation mode	remote control/electric control/manual
Control voltage	12v

Basic functions and safety configuration

1,Extension legs detection
     Real-time detection of the force state of the legs, and once the legs are loose, the alarm is restricted

2,Automatic interlocking device for getting on and off the vehicle
 Automatically realize interlocking and getting on the vehicle to prevent the vehicle from operating at the same time and achieving safety protection

3,Emergency electric hydraulic pump
 When a chassis engine or hydraulic main pump fails, send staff back to the ground

4,Emergency Stop Device
 Three emergency stop devices to ensure that all operations are stopped in emergency situations

5,Automatic range limiting
 Ensure that the entire vehicle operates within a safe operating range

6,Automatic vehicle level state tester
 It can detect the tilt state of the vehicle in both horizontal and vertical directions

7,Engine ignition and turn off
 Both the turntable and remote control box can ignite and shut off the engine

8,Compound action
 Combination movements can be performed simultaneously, such as platform slewing, rotary table slewing, amplitude and telescopicity of the boom

9,Chain break protection device
Set a balance mechanism for the extension rope to ensure the balance of the force on the left and right wire ropes

10,Electrical emergency operation function
In an emergency, resume vehicle movements to ensure that the vehicle can safely send personnel back to the ground in dangerous working conditions.
