8000L Truck-mounted Tack Hot Bitumen Pressure Asphalt Emulsion Distributor Trailer Sprayer Truck

Brand Name:	BIOCLEAN
Model Number:	BCADT-8000
MOQ:	1
Price:	5000-10000 USD
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	10000 Units per year

Detail Information

Product Description

Detail Information

Place of Origin:

NINGBO CHINA

Certification:

SGS-CE-OWB-2023-1098

Color:

Customizable

OEM:

YES

Packaging Details:

Custom steel frame crating

Supply Ability:

10000 Units per year

Highlight:

sprayer asphalt emulsion distributor

truck-mounted tack asphalt emulsion distributor

Hot bitumen Asphalt Emulsion Distributor

Product Description

Product descriptions

8000L Truck-Mounted Tack Hot Bitumen Pressure Emulsion Distributor: Core Highlights

Engineered for large-scale road construction and maintenance, the 8000L Truck-Mounted Tack Hot Bitumen Pressure Emulsion Distributor integrates professional precision, durability, and user-friendly maintenance to deliver consistent tack coat application while minimizing operational downtime.

Professional Performance

Its high-precision system features independently controllable fan-shaped atomizing nozzles, allowing flexible spray width adjustment (1.5m–6m) to adapt to diverse job sites. Operated via an in-cab ergonomic panel, the pneumatic control enables instant start-stop, avoiding over-spray and ensuring clear demarcation. Equipped with a German proportional control pump, it maintains spray rate accuracy (±2% deviation) across 0.3–3.0kg/m², critical for interlayer adhesion. A dual-temperature system—DEUTZ engine cooling water preheats the pump, while a RIELLO burner keeps emulsion at 120–160℃ (5℃ increments) with automatic compensation—ensures fluidity even in -10℃ to 40℃ conditions. The 8000L insulated carbon steel tank (4mm thick, ceramic-coated) minimizes heat loss (≤5℃/hour), with an internal spiral coil for uniform heating and a digital level gauge for real-time monitoring.

Low-Maintenance & Durability

Designed for cost-effective long-term use, it boasts a dual-cleaning system (diesel circulation + 0.6–0.8MPa high-pressure air purging) that automates pipeline/valve/nozzle cleaning from the cab, cutting maintenance time by 60%. Key components prioritize durability: the asphalt pump has sealed, lifetime-lubricated bearings; corrosion-resistant pneumatic valves offer 10,000+ cycles; and removable tungsten carbide nozzles enable tool-free replacement. The reinforced chassis with anti-vibration mounts reduces component stress, while protected external pipelines prevent damage. An intuitive PLC touchscreen system provides pre-set application modes and fault self-diagnosis, with accessible inspection hatches and quick-connect fittings simplifying routine checks.

Compliance & Versatility

Compliant with EN 12970 and ASTM D2397 standards, it works with various bitumen emulsions (CSS-1h, CRS-2, SS-1h) for highways, airports, bridge decks, and road rehabilitation. Available in 4x2/6x4 drive chassis, it offers strong maneuverability, with an optional GPS system for traceability and quality control.

In summary, this distributor combines professional-grade precision with hassle-free maintenance, empowering teams to deliver high-quality results efficiently—an indispensable asset for modern road construction.

Product Specification

Model	BCADT-10000
Shipping dimension(mm)	854024503300
I. Chassis
Chassis model	DONGFENG 4X2
GVW (kg)	16000
Engine	B190 33
Power (HP)	190
Chassis optional	HOWO
II. Tank and spray
Tank capacity	8000L
Material	Q235 carbon steel coated with stainless steel
Insulate thickness	50mm Fiberglass
Asphalt spray rate (L/m2)	0.25-3.0
Nozzles number	39
Spray width(mm)	6000

Product Overview

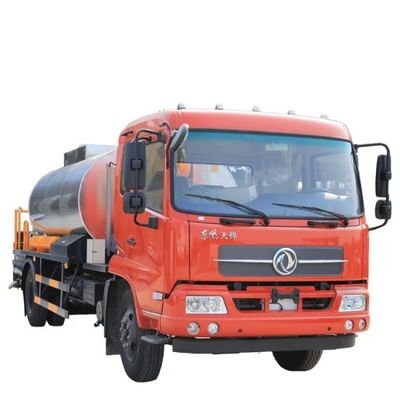

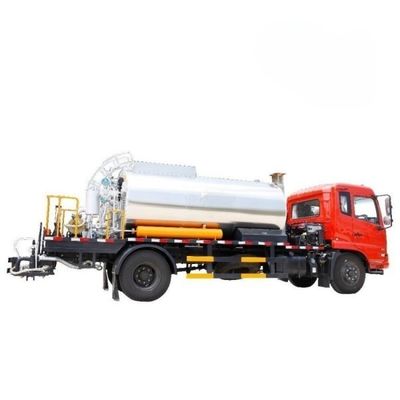

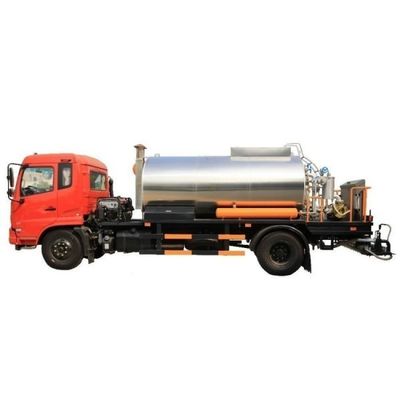

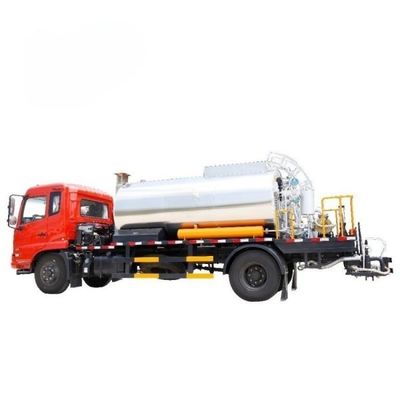

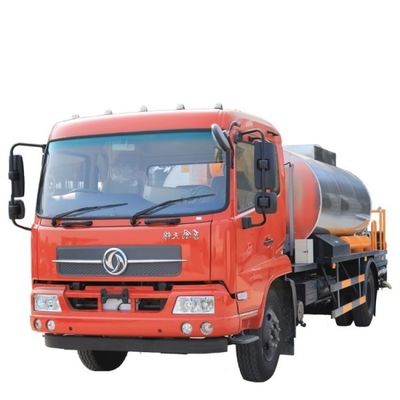

8000L Truck-mounted Tack Hot Bitumen Pressure Asphalt Emulsion Distributor Trailer Sprayer Truck 0

8000L Truck-mounted Tack Hot Bitumen Pressure Asphalt Emulsion Distributor Trailer Sprayer Truck 1

8000L Truck-mounted Tack Hot Bitumen Pressure Asphalt Emulsion Distributor Trailer Sprayer Truck 2

8000L Truck-mounted Tack Hot Bitumen Pressure Asphalt Emulsion Distributor Trailer Sprayer Truck 3
