| Brand Name: | Bioclean |
| Model Number: | ZBJ-5C |
| MOQ: | 1 Piece |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Product Name | ZBJ-5C | |||
| Rated Occupants | 2 person | |||
| Important Dimensions | Overall Dimensions (L × W × H) | 4450×2500×2400 | ||
| Wheelbase | 1400mm | |||
| Wheel Track | 1970mm | |||
| Ground Clearance | 130mm | |||
| Quality Parameters | Net Weight | 1700KG | ||
| Vehicle Performance | Maximum Speed | 16km/h | Working Speed | 10km/h |
| Minimum Turning Radius | 4.6m | Front Brush Diameter | 700mm | |
| Max Hill Climb | ≤ 25° | Middle Brush Diameter | 700mm | |
| Operating Time | 3-5 hours | Full Load Working Time | ≥3 hours | |
| Water Tank | 600L | Garbage Bin | 1200L | |
| Sweeping Width | 2500mm | Max Hopper Dump Height | 2500mm | |
| Electric Control System | Drive Electric Control | 60V 5000W DC Controller | ||
| Battery | 60V 300Ah lithium battery (optional dual/quad battery packs) | |||
| Drive Motor | 60V 5000W DC Motor | |||
| Charger | Portable Intelligent Charger | |||
| Charging Time | 6-8 hours | |||
| Vehicle Configuration | Cabin | Sealed frame structure steel cab, tempered glass door, electronic display instrument, reverse image, fan (optional air conditioner) | ||
| Seat | Independent main/auxiliary seats, leather soft seats, leather back cushions | |||
| Rearview Mirror | Large-field-of-view dead-angle-free rearview mirrors, front-side observation mirrors | |||
| Lights and Signals | Warning light + LED roof light + LED side lighting turn signal + LED headlight + rear light + license plate light | |||
| Suction Cup Width | 900mm | |||
| Fan | 60V 5000W Brushless DC Fan | |||
| HighPressure Cleaning System | High-Pressure Pump | 1500W | ||

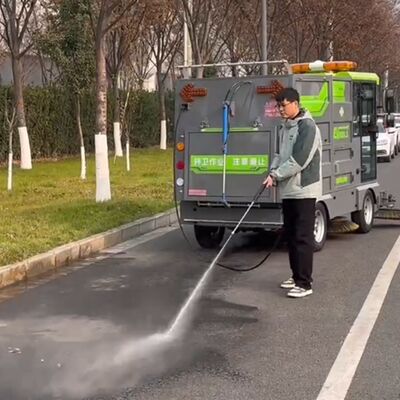

| Handheld High-Pressure Water Gun | 1 piece (with 0°, 15°, 25° nozzles) | |||
| High-Pressure Hose Reel | 10m | |||
| Rear Discharge Nozzle | 1400mm nine-hole sprinkler | |||
| Chassis | Tires | 185R14LT | ||
| Steering Type | Steering wheel mechanical electronic power steering | |||
| Braking System | Front/rear wheel hydraulic press brake system, handbrake | |||
| Body Color | Dark Grey (Customizable Logo) | |||
Product Features
★The body is designed with a streamlined shape and tempered glass.

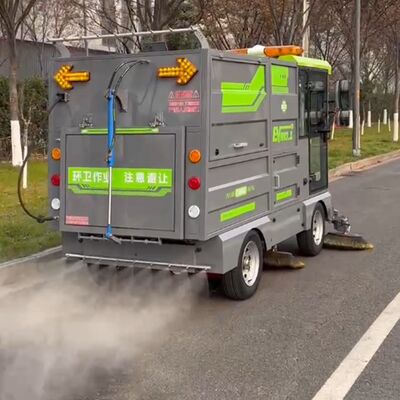

★A spray nozzle is located at the upper rear of the vehicle body, providing water spraying for dust suppression on the working surface.
★Equipped with vacuum tires for wear resistance and long service life.
★The vehicle body is coated with high-temperature metallic paint and features corrosion-resistant materials such as electrophoresis and spray coating for rust prevention.
