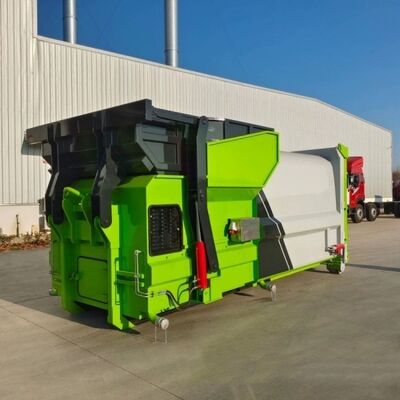

• 12m³ Mobile Waste Compaction Unit: High-Efficiency & Budget-Friendly Sanitation Solution




  Developed for medium-sized cities, county-level waste transfer centers, large residential-industrial zones, and key BRI projects, this 12m³ mobile compactor combines optimal capacity with innovative compression technology—meeting mid-scale waste management needs while boosting efficiency and cutting long-term costs.




  Core Advantages: Efficiency & Economy




  Operational Efficiency




  • Agile Throughput: 50-70 TPD, serving 50,000-100,000 residents or medium industrial hubs. "Continuous compaction + rapid bin swap" design improves efficiency by 38% vs. 10m³ models.
  • Rapid Compaction: Dual coordinated high-pressure rams (150-190 tons force) complete a cycle in 100-140 seconds, ensuring non-stop processing during peak hours.
  • Easy Truck Loading: Airtight bins load onto vehicles in ≤70 seconds, reducing waiting time and improving transfer efficiency by 26% vs. traditional compactors.
  • Strong Compression: 3.6:1 ratio (1.02 t/m³ density), effectively shrinking waste volume for cost-saving transport.

  Cost Savings

  • Lower Transport Costs: 60% fewer truck trips vs. low-capacity equipment, trimming annual fuel, labor, and landfill fees by 29%.
  • Energy Efficiency: Optimized hydraulic system with energy recovery uses 18-25 kW/h per cycle—17% lower than standard mid-capacity models.
  • Low Maintenance: Wear-resistant components, modular assembly, and anti-rust coating extend maintenance intervals to 5 months, cutting annual upkeep costs by 21%.
  • Steady ROI: 4-5 year payback period, ideal for municipal projects, small-to-medium PPPs, and industrial waste collaborations in emerging markets.

  Working Principle

  1. Waste Feeding: Enlarged auto-hopper (or optional semi-automatic conveyor) with smart speed-adjustable anti-clog device ensures smooth flow of mixed/bulky waste—no manual intervention.
  2. Horizontal Compaction: Dual coordinated rams exert uniform pressure; adaptive regulation adjusts force by waste volume to optimize efficiency.
  3. Sealed Transit: Compacted waste is pushed into the 12m³ airtight bin with hydraulic locking. Quick-release fasteners enable fast truck loading for continuous operation.
  4. Eco-Compliant Operation: Compression sewage is collected in a closed tank (meets international discharge standards); dual-stage deodorization eliminates odors and bacteria, complying with BRI and global regulations.

  Ideal Applications




  Medium-sized cities, county-level transfer stations, large residential/commercial complexes, medium industrial parks, and key BRI waste projects (e.g., Myanmar, Sri Lanka, Tanzania, Romania)—replacing outdated open sites or low-efficiency mid-capacity equipment.




  Why Choose This Model?




  A top-tier mid-range solution, it balances reliable processing capability, efficiency, and cost control. Its solid compression ratio and rapid cycle time maximize waste reduction, while energy-saving features and extended maintenance intervals keep long-term costs low. Built with durable high-tensile steel to withstand harsh climates and frequent use, it requires minimal professional training—making it the preferred choice for municipal authorities, private operators, and small-to-medium international PPPs, delivering consistent performance, tangible savings, and sustainable value.







  Product Specification




  Parameter	Specification
  Rated Volume	12 m³
  Daily Processing Capacity	50-70 TPD
  Compression Ratio	3.6:1
  Compacted Waste Density	1.02 t/m³
  Compaction Force	150-190 tons
  Compression Cycle Time	100-140 seconds
  Energy Consumption per Cycle	18-25 kW/h
  Maintenance Interval	5 months
  Bin Loading Time	≤70 seconds/bin
  Overall Dimensions (L×W×H)	6200×2400×2600 mm
  Net Weight	4.8-5.4 tons
  Gross Weight (Full Load)	16-18 tons
  Main Structure Material	Q345 high-tensile steel (side plate: 4.5mm; base plate: 6mm)
  Feed Hopper Capacity	4.2 m³
  Hydraulic System Working Pressure	23 MPa
  Sewage Treatment	Closed-loop collection + primary filtration system
  Deodorization System	Activated carbon + mist spray dual-stage deodorization
  Operating Temperature Range	-7℃ to 50℃
  Noise Level	≤72 dB
  Safety Standards	ISO 14121, CE, EN 840 certification
  Payback Period	4-5 years
