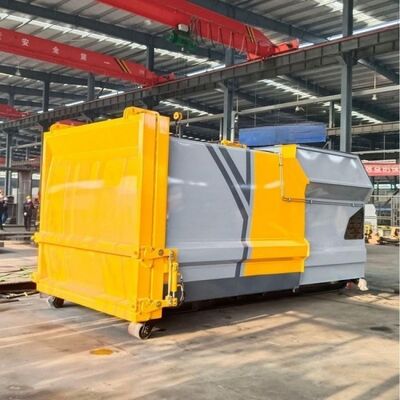

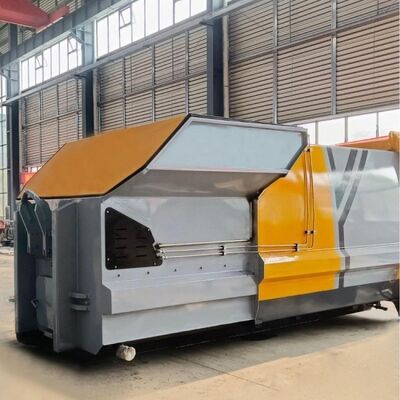

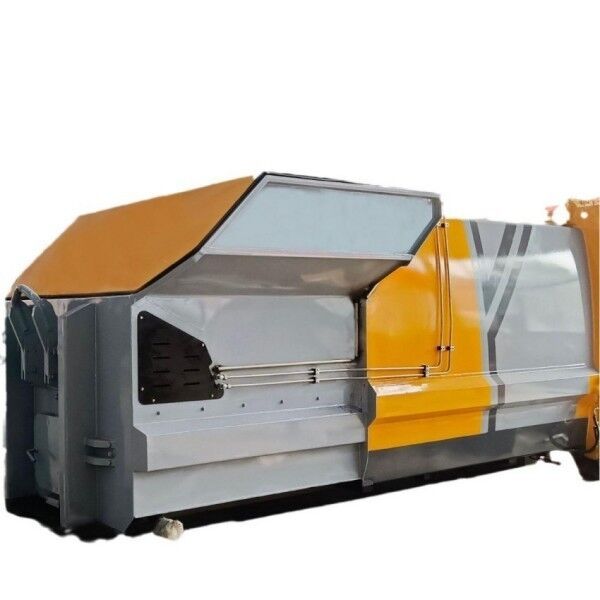

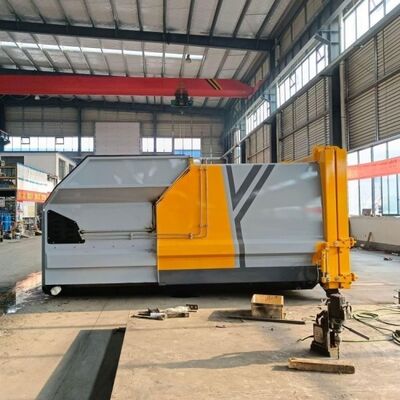

25m³ Mobile Waste Compaction Unit: High-Efficiency & Cost-Effective Sanitation Solution
Engineered for large cities, provincial waste transfer hubs, mega industrial parks, and key BRI infrastructure projects, this 25m³ mobile compactor integrates high-capacity design with advanced compression technology—meeting large-scale waste management needs while maximizing efficiency and minimizing long-term costs.
Core Advantages: Efficiency & Cost-Effectiveness
Operational Efficiency
Large Throughput: 100-120 TPD, serving 150,000-200,000 residents or large industrial zones. "Continuous compaction + rapid transfer" design boosts efficiency by 45% vs. 20m³ models.
Fast Compression: Dual synchronous high-pressure rams (200-250 tons force) complete a cycle in 80-110 seconds, ensuring non-stop processing during peak hours.
Quick Transfer: Sealed bins load onto trucks in ≤60 seconds, improving transfer efficiency by 32% vs. conventional units.
Superior Compression: 4.2:1 ratio (1.15 t/m³ density), drastically reducing waste volume for transport.
Cost Savings
Reduced Transport Costs: 70% fewer truck trips vs. low-capacity equipment, cutting annual fuel, labor, and landfill fees by 35%.
Energy Efficiency: Optimized hydraulic system with energy recovery uses 28-35 kW/h per cycle—22% lower than standard high-capacity models.
Low Maintenance: Wear-resistant alloy steel, modular design, and corrosion coating extend maintenance intervals to 6 months, slashing annual costs by 28%.
Rapid ROI: 3-4 year payback period, ideal for municipal projects, large PPPs, and industrial waste partnerships in emerging markets.
Working Principle
Waste Feeding: Oversized auto-feed hopper (or optional full-automatic conveyor) with adjustable speed anti-clogging system ensures smooth flow of mixed/bulky waste—no manual intervention.
High-Pressure Compression: Dual synchronous rams apply uniform pressure; adaptive control adjusts force by waste volume to optimize efficiency.
Sealed Transfer: Compacted waste is pushed into an airtight 25m³ bin with hydraulic locking. Quick-release latches enable fast truck loading for continuous operation.
Eco-Friendly Operation: Compression sewage is collected in a closed tank (meets international discharge standards); dual-stage deodorization eliminates odors and bacteria, complying with BRI and global environmental rules.
Ideal Applications
Large/medium cities, provincial transfer stations, mega residential/commercial complexes, large industrial parks, and key BRI waste projects (e.g., Indonesia, Pakistan, Saudi Arabia, South Africa)—replacing outdated open waste sites or low-efficiency high-capacity equipment.
Why Choose This Model?
As a flagship high-capacity solution, it combines large processing power, operational efficiency, and cost control. Its high compression ratio and fast cycle time maximize waste reduction, while the energy-saving system and extended maintenance intervals minimize long-term costs. Built with rugged high-strength steel to withstand harsh climates and heavy use, it requires minimal technical expertise—making it the top choice for municipal governments, large private operators, and international PPPs, delivering reliable performance, substantial savings, and sustainable value.
Product Specification
Parameter
Specification
Rated Volume
25 m³
Daily Processing Capacity
100-120 TPD
Compression Ratio
4.2:1
Compacted Waste Density
1.15 t/m³
Compaction Force
200-250 tons
Compression Cycle Time
80-110 seconds
Energy Consumption per Cycle
28-35 kW/h
Maintenance Interval
6 months
Bin Loading Time
≤60 seconds/bin
Overall Dimensions (L×W×H)
7200×2600×2800 mm
Net Weight
6.8-7.5 tons
Gross Weight (Full Load)
28-30 tons
Main Structure Material
Q355 high-strength steel (side plate: 6mm; base plate: 8mm)
Feed Hopper Capacity
6.5 m³
Hydraulic System Working Pressure
25 MPa
Sewage Treatment
Closed-loop collection + filtration + pH adjustment system
