Product descriptions

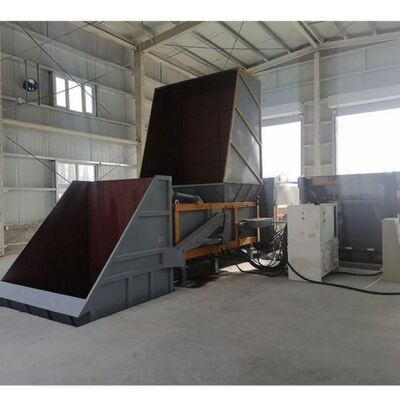

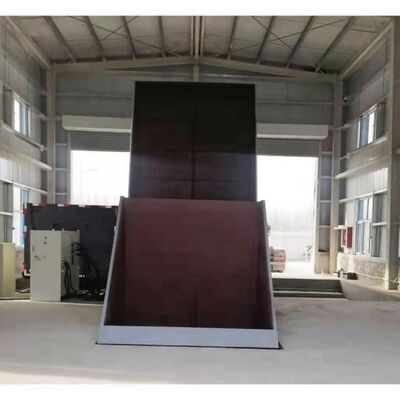

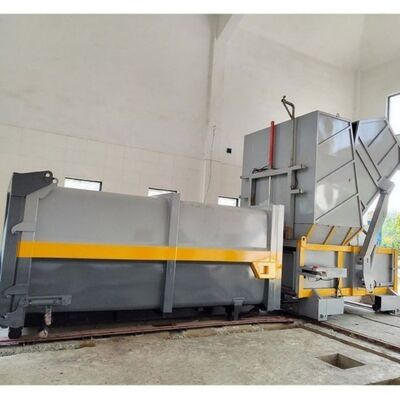

• 200-500 TPD Horizontal Waste Compaction Station: High-Efficiency & Cost-Optimized Sanitation Solution




  Tailored for large-medium cities, provincial waste transfer hubs, mega residential-industrial complexes, and key Belt and Road infrastructure projects, this compaction station integrates advanced compression technology with cost-efficient design—meeting large-scale waste management needs of fast-developing regions while balancing land efficiency, budget control, and operational simplicity.

  Core Advantages: Efficiency & Economy




  Operational Efficiency




  • Scalable Throughput: 200-350 TPD and 350-500 TPD sub-models (serving 50,000-150,000 residents or large industrial/logistics parks). "One machine + three bins" alternating design eliminates transfer downtime, boosting efficiency by 40% vs. dual-bin compactors.
  • High-Speed Compaction: Dual synchronous high-pressure rams (160-220 tons force) complete a cycle in 80-120 seconds, ensuring continuous processing during peak hours.
  • Seamless Transfer: Sealed bins load onto trucks in ≤60 seconds, cutting queue time and improving transfer efficiency by 30%.

  Cost Savings

  • Compression-Driven Savings: 4:1 compression ratio (1.1 t/m³ density) reduces truck trips by 65% and fuel/labor/landfill fees by 30% vs. low-capacity equipment.
  • Energy Efficiency: Optimized hydraulic system with variable displacement pumps uses 20-28 kW/h per cycle—18% lower than standard high-capacity models.
  • Low Maintenance: Wear-resistant alloy steel and modular design extend maintenance intervals to 6 months, slashing annual maintenance costs by 25%.
  • Rapid ROI: 3-4 year payback period, ideal for municipal projects, large PPPs, and industrial waste partnerships in emerging markets.

  Working Principle

  • Waste Loading: Automatic widened hopper (or optional full-automatic conveyor) with intelligent anti-blockage system enables smooth flow of mixed/bulky waste, no manual intervention.
  • Horizontal Compression: Dual synchronous rams apply uniform high pressure; adaptive control adjusts force by waste volume for optimized efficiency.
  • Sealed Transfer: Compacted waste is pushed into three alternating sealed bins (simultaneous loading/compaction/transfer), with hydraulic locking for leak-proof transport and quick-release latches.
  • Eco-Friendly Operation: Compression sewage is collected in a closed tank (meets local discharge standards); high-efficiency spray deodorization complies with Belt and Road environmental regulations.

  Ideal Applications




  Large-medium cities, provincial/city-level waste transfer stations, mega residential/commercial complexes, large industrial parks, logistics hubs, and key waste projects in Belt and Road countries (e.g., Indonesia, Thailand, Vietnam, Nigeria, Egypt)—replacing outdated open waste sites or low-efficiency high-capacity compactors.




  Why Choose This Model?




  As a flagship high-capacity solution for emerging markets, it balances large-scale processing, efficiency, and cost control. The three-bin design ensures 24/7 operation, while the energy-saving hydraulic system and extended maintenance intervals minimize long-term costs. Built to withstand extreme climates and require minimal technical expertise, it is the preferred choice for municipal governments, large private operators, and international PPPs—delivering reliable performance, substantial savings, and sustainable value.




  Product Specification







  Parameter	Specification
  Daily Processing Capacity	200-350 TPD / 350-500 TPD
  Compression Ratio	0.167361111
  Compacted Waste Density	1.1 t/m³
  Compaction Force	160-220 tons
  Cycle Time	80-120 seconds
  Energy Consumption per Cycle	20-28 kW/h
  Maintenance Interval	6 months
  Bin Loading Time	≤60 seconds/bin
  Operating Temperature Range	-10℃ to 50℃
  Noise Level	≤72 dB
  Main Frame Material	Q355 high-strength steel
  Sewage Treatment	Closed-loop collection system
  Safety Standards	ISO 14121, CE certification
  Payback Period	3-4 years
