| Brand Name: | Bioclean |
| Model Number: | ZBJ5187ZYS451GZ10BEV |
| MOQ: | 1 |
| Price: | 9000 USD |
| Payment Terms: | T/T |
| Supply Ability: | 100unit/year |

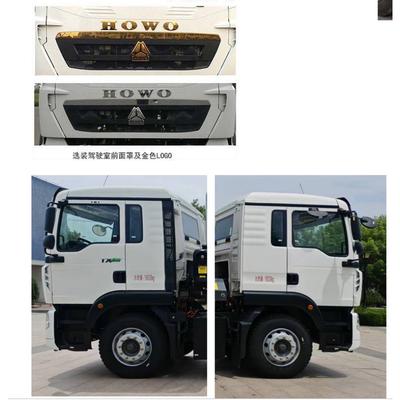

| 1 | Chassis | Chassis: Adopt a second-class chassis of a well-known brand, which has strong load-bearing capacity, advanced technology and reliable quality. It is used to realize functions such as the bearing of special mechanisms and the driving of the vehicle. Engine: Adopt a diesel engine of a well-known brand, which has strong power. |
| 2 | Garbage Bin | The garbage bin is a component of this product for collecting and storing domestic waste, and it is also the base for connecting the compaction and filling device. The overall stress structural parts of the garbage bin are designed reliably, and the rigidity is reasonably matched; the garbage bin is designed to be airtight, which can effectively prevent secondary pollution. |

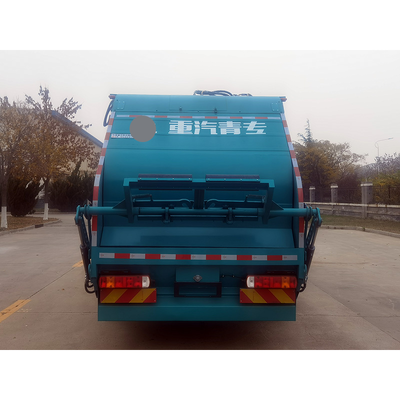

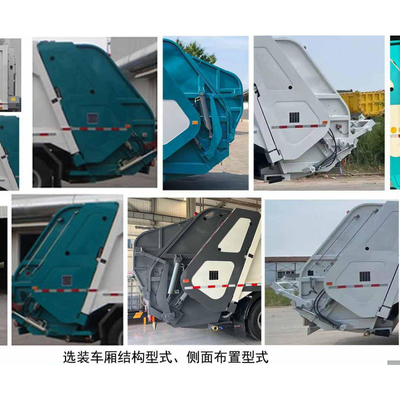

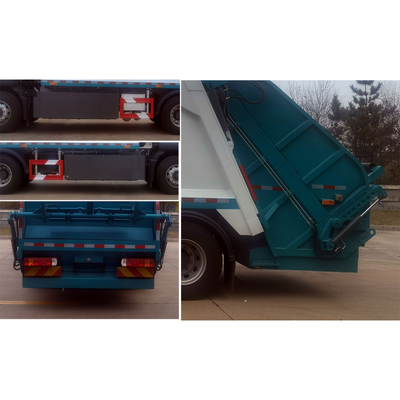

| 3 | Stuffing Device | The stuffing device is located at the tail of the box body, with a built-in scraper mechanism and a lifting mechanism, which can press the garbage into the garbage bin. |
| 4 | Feeding Mechanism | The feeding mechanism is a device for loading the garbage in the trash can into the stuffing device. The feeding mechanism can load two 240L trash cans at the same time. |
| 5 | Stuffing Device | The stuffing device is located at the tail of the box body, and it is a device for compressing and covering the loose garbage. The compaction and filling device is composed of components such as a scraper, a sliding plate and a sliding block. The sliding plate is installed in the sliding grooves on both sides of the stuffing device and can slide up and down along the sliding grooves. The scraper is installed on the sliding plate and can perform a rotating motion. |
| 6 | Sub-frame | The sub-frame is a basic component of the superstructure of the product. It is fixed on the chassis girder through the connection seat and plays a role in fixing and supporting the superstructure. |
| 7 | Side Guardrail | The side guardrail is assembled from an aluminum alloy cross beam and a high-quality carbon steel bracket, with a beautiful and generous appearance. |
| 8 | Operation Mode | The vehicle adopts a control mode of buttons + operating levers. High-quality electrical components at home and abroad are used, and different control programs are compiled according to different requirements to realize intelligent control, safety control and humanized control operations of the vehicle. Moreover, the controller has short-circuit self-protection. Therefore, this system has the characteristics of strong unity, high reliability, and convenient operation and maintenance. |
It's easy to operate
The material is made of high-strength manganese steel plate, which is not easily deformed, wear-resistant, and has strong corrosion resistance.
Maximum consideration for customer usage environment, user-friendly design with many highlights, including night lighting and dual pollution,Water tank, with drainage pipe, remote control, complete operation and maintenance manual and video.
