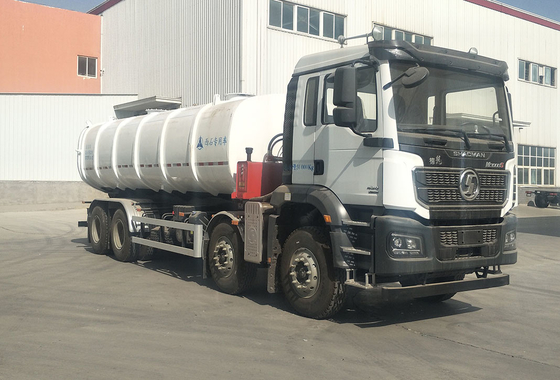

19.46 Cubic Meter Dump Truck for Sludge and Waste Transportation with Rear Unloading Method and Closed Top

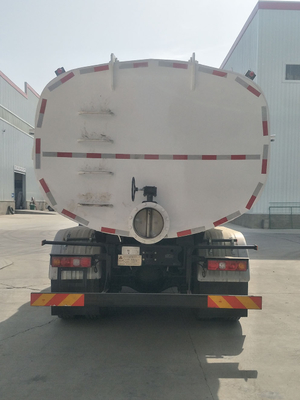

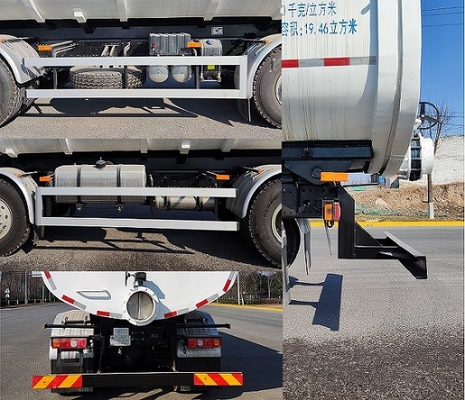

Mainly used for transporting sludge, oil sludge and oil feet generated from oil extraction and refining, drilling mud, waste generated from non-ferrous metal smelting, and garbage fly ash. The unloading method is rear unloading. The top is closed and cannot be opened. Transport medium: sludge, density: 800 kg/cubic meter, effective volume: 19.46 cubic meters, total volume: 20.4 cubic meters; The dimensions of the tank body (length x long axis x short axis) (mm) are 7020 × 2380 × 17007500 × 2350 × 1630, and only the chassis with a wheelbase of 1950+4025+1400 (mm) is selected. ABS model: ZQFB-V; ABS manufacturer: Xi'an Zhengchang Electronics Co., Ltd. Install a driving recorder with satellite positioning function. The material of the side protection device is aluminum alloy, and the connection method is bolt connection; The material of the rear protective device is Q235, and the connection method is welding connection. The width of the rear protective section is 140mm × 60mm, and the height of the rear protective device above the ground is 490 (mm). This model can be optionally equipped with an ETC onboard device. Install WP12.400E62, WP12.430E62,WP12.460E62,X12NS6B360,X12NS6B385,X12NS6B400,X12NS6B430,X12NS6B460,X12NS6B440,X12NS6B470,X12NS6B490 The declared fuel consumption value for the engine is 40.9L/100km. Optional driver's cab bumper, intake flat pipe, boarding pedal, battery box position, urea tank position, and muffler housing are installed along with the chassis. After optional installation, the head is fixed and the valve is unloaded.

Product Features

Durable and corrosion-resistant ship type box structure, achieving 100% leak free operation

The entire garbage bin is made of high-strength carbon steel plates welded together, with a beautiful appearance, good stress, and not easily deformed. Whole vehicle



The structural components are cut by laser to improve the strength and durability of the box. And all metal parts are treated with advanced anti rust paint, making the box sturdy, durable, and well sealed. The carriage adopts a complete set of fixtures and fixtures for welding and processing, ensuring the processing accuracy, excellent quality, and good interchangeability of the produced products. The ship type structure avoids the traditional old-fashioned box and the sealing structure at the back, fundamentally solving the problem of secondary pollution during transportation.
