| Brand Name: | Bioclean |
| Model Number: | ZBJ4250DBEV15 |
| MOQ: | 1 |
| Price: | 70000 |
| Payment Terms: | T/T |
| Supply Ability: | 500unit/year |
Product Description
| English Translation | Technical Data | English Translation | Technical Data |
|---|---|---|---|
| Gross Vehicle Weight (GVW) | 25000 kg | Load Utilization Coefficient | — |
| Curb Weight | 8410 kg / 8870 kg / 9250 kg | Rated Payload | (kg) |
| Towed Trailer Mass | 40000 kg / 39620 kg | Fifth Wheel Load Rating | 16460 kg / 16000 kg / 15620 kg |
| Cab | — | Front Seat Passengers | 2 persons |
| Rated Passenger Capacity | (persons) | Anti-lock Braking System (ABS) | Equipped |
| Approach Angle / Departure Angle | 15° / 14° | Front Overhang / Rear Overhang | 1510 mm / 800 mm, 1510 mm / 810 mm |
| Axle Load | 7000 / 18000 kg (dual axle group) | Wheelbase | 3450 + 1350 mm |
| Number of Axles | 3 | Maximum Speed | 89 km/h / 110 km/h |
| Fuel Consumption | 35 L/100km | Leaf Spring Configuration | 2/2, 2/3, 2/4, 2/-, 2/1+-, 3/3, 3/4, 2/1, 1/1, 3/5, 3/-, 3/1+-, 1/-, 1/1+- |
| Number of Tires | 10 units | Tire Specification | 295/80 R22.5 18PR, 12R22.5 18PR |
| Front Wheel Track | 2040 mm / 2060 mm | Rear Wheel Track | 1860/1860 mm, 1880/1880 mm |
Specification
403 kW, 433 kW, and 455 kW respectively.
At a curb weight of 9,250 kg, the corresponding maximum authorized total mass of the towed trailer is 39,620 kg.
At curb weights of 8,410 kg / 8,870 kg, the corresponding maximum authorized total mass of the towed trailer is 40,000 kg.
ABS Manufacturers and Models:
Dongke Kenuoer Commercial Vehicle Brake System (Shiyan) Co., Ltd. / GSBC EBS
Dongfeng Commercial Vehicle Co., Ltd. / DFCV ABS
EBS is optional. EBS is compatible with front disc brakes and front/rear drum brakes, and includes all functions of ABS.
Front disc brakes are only configured with a maximum speed of 110 km/h.
EBS Manufacturer and Model: Dongke Kenuoer Commercial Vehicle Brake System (Shiyan) Co., Ltd. / GSBC EBS.
The vehicle is equipped with a tachograph with satellite positioning function.
This vehicle model can optionally be fitted with an on-board ETC (Electronic Toll Collection) device.
A speed-limiting device is optional, limiting the vehicle speed to 89 km/h.

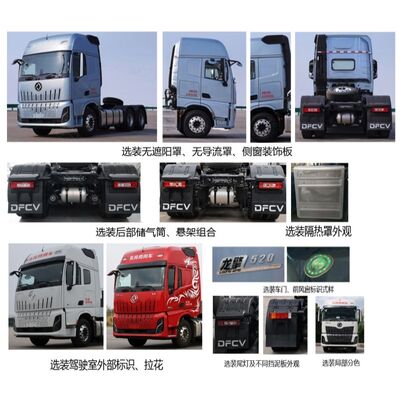

Optional equipment includes:
Rear air reservoirs with different appearances, quantities, and mounting positions
Suspensions with different appearances
No fairing, no side window trim panels, or no sun visor
Heat shields with different appearances
External cab manufacturer logos, decals, and China VI emission standard badges
Taillights and mudguards with different appearances
Two-tone partial cab paint schemes
Bumper steps and battery boxes in different styles
Air conditioning system
Side skirts
