| Brand Name: | Bioclean |
| Model Number: | ZBJ5317GQWF |
| MOQ: | 1pc |
| Price: | $10000-$60000 |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 2000pcs/year |

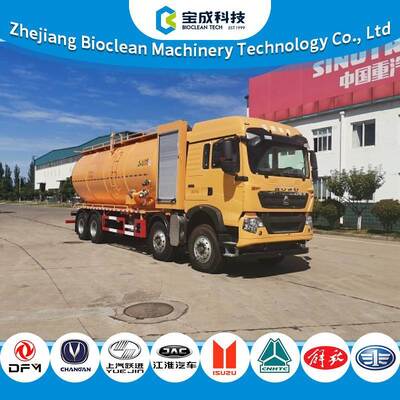

The ZBJ5317GQWF is a high-pressure jetting and sewage suction truck built on the reliable Sinotruk Howo ZZ1317N466GF1 8×4 chassis. Designed for demanding municipal and industrial sanitation work, it combines a heavy-duty high-pressure plunger pump for sewer pipeline dredging with a rotary vane vacuum pump for sludge and septic waste collection. Its separated dual-compartment tank design keeps clean water and sewage fully isolated, preventing cross-contamination during operation.
| Model | ZBJ5317GQWF |
|---|---|
| Chassis Model | ZZ1317N466GF1 (Sinotruk Howo) |
| Drive Type | 8×4 |
| Gross Vehicle Weight (GVW) | 31,000 kg |
| Rated Payload | 11,370 kg |
| Curb Weight | 19,500 kg |
| Wheelbase | 4,600 + 1,350 mm |
| Overall Dimension | 11,900 × 2,500 × 3,500 mm |
| Tire Size | 12.00R20 |
| Fuel Type | Diesel |
| Emission Standard | China VI (GB17691-2018, equivalent to Euro VI) |
| Fuel Tank Capacity | 400 L |
| Tank Configuration | Dual-compartment tank — clean water tank + sewage tank |
| Total Tank Volume | 18 m³ (Clean water: 6 m³, Sewage: 12 m³) |
| Tank Material | Carbon steel with anti-corrosion coating |
| Superstructure | High-pressure water jetting system, vacuum suction system, hydraulic rear cover |
| High Pressure Pump | High-pressure plunger pump, for sewer dredging |
| Vacuum Pump | Rotary vane vacuum pump for sludge & sewage suction |
| Operation | Hydraulic & electric control, side control panel |
| Max Speed | 85 km/h |
| Application | Sewer dredging, sludge suction, septic tank cleaning, pipeline jetting |
This 18 m³ combined jetting and vacuum truck is built on a Sinotruk Howo 8×4 chassis and complies with the China VI emission standard, equivalent to Euro VI. It adopts a separated dual-tank design with an independent clean water compartment and sewage compartment to avoid cross-contamination.
Equipped with a heavy-duty high-pressure plunger pump and a rotary vane vacuum pump, the vehicle integrates two core functions: high-pressure water jetting for clearing blocked sewer pipelines, and vacuum suction for collecting sludge, sewage, and septic waste. The rear hydraulic cover enables quick unloading of sucked sludge, while the reliable hydraulic and vacuum system is easy to operate via the side control station.
This multi-purpose vehicle is widely used for municipal sewer maintenance, septic tank cleaning, drainage pipeline dredging, and industrial sewage suction work.
