Garbage Compactor Truck
>
Rear Loader Garbage Compactor Truck with 10 m³ Compactor Bin Meeting China VI Emission Standard for Municipal Sanitation

Rear Loader Garbage Compactor Truck with 10 m³ Compactor Bin Meeting China VI Emission Standard for Municipal Sanitation

Brand Name: Bioclean
Model Number: ZBJ5126ZYSE6
MOQ: 1pc
Price: $10000-$60000
Payment Terms: L/C,T/T
Supply Ability: 2000pcs/year
Detail Information
Place of Origin:
China
Certification:
CE ,ISO9001
Gross Vehicle Weight:
12490 Kg
Rated Payload:
3885 Kg
Wheelbase:
3800 Mm
Overall Dimension:
7810 × 2480 × 2950 Mm
Compactor Bin Volume:
10 M³
Compression Ratio:
3:1
Packaging Details:
Container/Frame
Supply Ability:
2000pcs/year
Highlight:

Rear Loader Garbage Compactor Truck

,

10 m³ Compactor Bin Refuse Compactor Truck

,

China VI Emission Waste Compaction Truck

Product Description
  • Model: ZBJ5126ZYSE6
  • Chassis Model: EQ1126SJ8CDC
  • Drive Type: 4×2
  • Gross Vehicle Weight (GVW): 12490 kg
  • Rated Payload: 3885 kg
  • Curb Weight: 8415 kg
  • Wheelbase: 3800 mm
  • Overall Dimension: 7810 × 2480 × 2950 mm
  • Tire Size: 8.25R20
  • Fuel Type: Diesel
  • Emission Standard: China VI (GB17691-2018, equivalent to Euro VI)
  • Fuel Tank Capacity: 180 L
  • Compactor Bin Volume: 10 m³
  • Bin Material: High-strength wear-resistant steel plate, sealed structure with sewage collecting tank
  • Superstructure: Rear loading hopper, hydraulic compaction & push-plate ejection system
  • Operation: Electro-hydraulic control, cabin and rear side control available
  • Compression Ratio: Up to 3:1
  • Max Speed: 98 km/h
  • Application: Collection, compression and transfer of municipal domestic solid waste

Functional Description

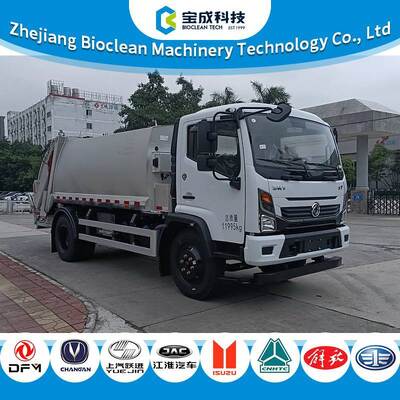

This 10m³ rear-loaded garbage compactor truck is built on 4×2 Dongfeng chassis and meets China VI emission standard equivalent to Euro VI. The wear-resistant steel compactor bin adopts fully sealed design with sewage collection tank to avoid sewage leakage and odor escape during transportation and prevent secondary pollution. Equipped with rear feeding hopper and heavy-duty hydraulic compaction mechanism, it achieves a compression ratio up to 3:1 to greatly increase loading capacity and reduce transportation trips. Waste is discharged by hydraulic push plate ejection. The reliable electro-hydraulic system can be operated from the cabin or the rear side panel for convenient control. It is widely used for collection and transfer of domestic waste in urban communities, commercial districts, sanitation stations and municipal projects.
