| Brand Name: | Bioclean |
| Model Number: | ZBJ5180TCADFE6 |
| MOQ: | 1pc |
| Price: | $10000-$60000 |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 2000pcs/year |

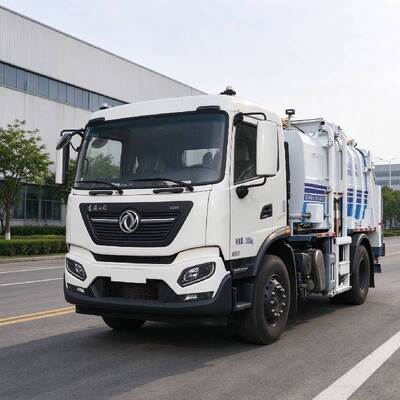

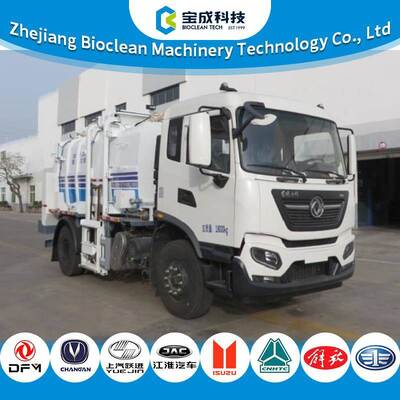

This 11 m³ sealed food waste collection truck is built on a Dongfeng Kinland 4*2 chassis and complies with the China VI emission standard (equivalent to Euro VI). The tank is fabricated from corrosion-resistant stainless steel and features a fully enclosed, leak-proof structure with reinforced sealing strips, effectively preventing sewage spillage and odor escape during transportation to avoid secondary environmental pollution.

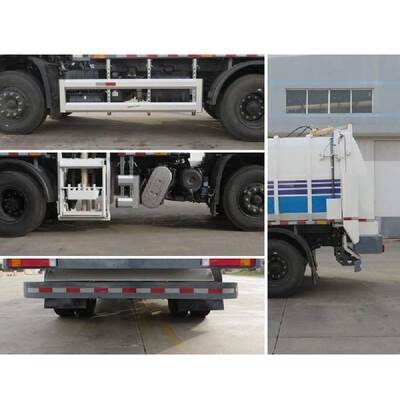

The vehicle integrates an internal solid-liquid separation system that separates kitchen sludge from leachate, facilitating subsequent waste treatment. A side hydraulic bin lifter automatically lifts and empties standard 120 L and 240 L waste bins, reducing manual labor and improving collection efficiency. Waste is discharged via hydraulic rear ejection. The entire hydraulic system is stable and easy to operate, controllable both from within the cabin and from the side of the vehicle.
This truck is widely used for the collection and transfer of catering waste, kitchen residues, and wet organic waste from restaurants, canteens, communities, and municipal sanitation stations.
| Model | ZBJ5180TCADFE6 |
|---|---|
| Chassis Model | DFH1180EX8 (Dongfeng Kinland) |
| Drive Type | 4*2 |
| Gross Vehicle Weight (GVW) | 18,000 kg |
| Rated Payload | 9,890 kg |
| Curb Weight | 8,950 kg |
| Wheelbase | 4,500 mm (standard version) |
| Overall Dimension | 7,120 * 2,500 * 3,190 mm |
| Tire Size | 10.00R20 18PR |
| Fuel Type | Diesel |
| Emission Standard | China VI (GB17691-2018, equivalent to Euro VI) |
| Fuel Tank Capacity | 200 L |
| Tank Volume | 11 m³ |
| Tank Material | Stainless steel, fully sealed, leak-proof, with solid-liquid separation function |
| Superstructure | Side bin lifter for 120 L / 240 L waste bins, hydraulic rear discharge |
| Max Speed | 89 km/h |
| Application | Collection and transportation of catering / kitchen food waste |
