| Brand Name: | Bioclean |
| Model Number: | ZBJ5257GSSN464GF1CL |
| MOQ: | 1 |
| Price: | 16999 USD |
| Payment Terms: | T/T |
| Supply Ability: | 100unit/year |
| Model Number | ZBJ5257GSSN464GF1CL |
| Volume | 10001 - 15000L |
| Certification | ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE |
| Emission Standard | Euro 6 |
| Sprinkling Area | 10-16m |
| Transmission Type | Manual |
| Payload | 13400kg |
| Fuel | Diesel |
| Drive Wheel | 4×2 |
| Engine Capacity | ＜4L |
| Condition | New |
| Chassis | ZZ1257N584GF1CL |
| Engine | MT07.29-60 |
| Maximum Speed | 110km/H |
| Approaching/Departure Angle | 19°/13° |
| Axle Load | 13400,13335(Kg) |
| Front/Rear Overhang | 1430/2330mm |
| Curb Weight | 11470kg |
| Rated Loading | 25000kg |
| Total Mass | 11995kg |
| Tank Material | Carbon Steel or Stainless Steel |
| Tank Thickness | 4mm/5mm/6mm |
| Effective Volume | 14m³ |
| Transport Package | Wooden Case / Iron Frame / Container / SKD / CKD |
| Specification | 9435×2500×3060mm |
| Trademark | Bioclean |
| Origin | Ningbo, China |
| HS Code | 8705909990 |
| Production Capacity | 5000PCS/Year |
| Package Size | 1000.00cm × 260.00cm × 350.00cm |
| Package Gross Weight | 12000.000kg |
| Serial Number | Component Name | English Description |
| 1 | Chassis | Adopt a second-class chassis of a well-known brand with strong load-bearing capacity, advanced technology and reliable quality. Used for bearing special mechanisms and vehicle driving. Engine: Adopt a diesel engine of a well-known brand with strong power. |

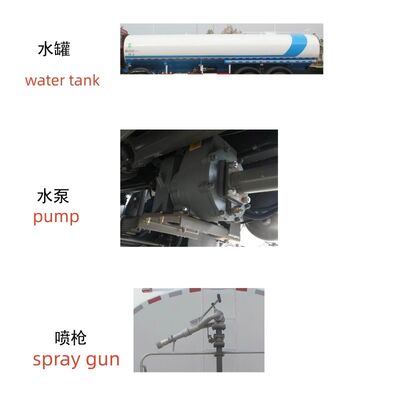

| 2 | Water Tank | Large volume water tank with long working time. Optimized design using finite element analysis method and passed strict reliability tests. Advanced one-time tank forming technology with penetration non-destructive flaw detection, no water leakage and long service life. |
| 3 | Low-pressure Water Circuit System | Low-pressure Water Pump: Self-priming two-stage centrifugal pump from renowned enterprise with high efficiency and good reliability. Front Spraying Device: Duckbill-shaped forward nozzles under cab front for forward fan-shaped spraying covering 3 lanes. Middle Opposite Flushing: Conical nozzles on each side for two-way flushing, adjustable nozzle angle. Front opposite flushing washes 6 lanes at once. Rear Sprinkling Device: Duckbill-shaped nozzles facing left/right sides and circular nozzles with sprinkling width ≥14m. Water Cannon: Aluminum long-range water cannon with 0°-360° rotation, adjustable spraying shape, firing range ≥50m. |
| 4 | Operation Mode | Electric control pneumatic valve/solenoid valve control mode. Opening/closing of all nozzles except water cannon controlled through operation box. |
