| Brand Name: | Bioclean |
| Model Number: | ZBJ5140GSSEQ6 |
| MOQ: | 1 |
| Price: | 12999 USD |
| Payment Terms: | T/T |
| Supply Ability: | 100unit/year |
| Specification | Details |
|---|---|
| Model NO. | ZBJ5140GSSEQ6 |
| Volume | 5001 - 10000L |
| Certification | ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE |
| Emission Standard | Euro 6 |
| Sprinkling Area | 10-16m |
| Transmission Type | Manual |
| Payload | 7165kg |
| Fuel | Diesel |
| Drive Wheel | 4×2 |
| Engine Capacity | ＜4L |
| Condition | New |
| Chassis | EQ2145SJ8CDC |
| Engine | D4.0NS6B195 |
| Maximum Speed | 89km/H |
| Approaching/Departure Angle | 21°/17° |
| Wheelbase | 3800,3390,3650,4200mm |
| Front/Rear Overhang | 1330/1440mm |
| Curb Weight | 6700kg |
| Rated Loading | 7165kg |
| Total Mass | 14060kg |
| Tank Material | Carbon Steel or Stainless Steel |
| Tank Thickness | 4mm/5mm/6mm |
| Effective Volume | 14m³ |
| Transport Package | Wooden Case / Iron Frame / Container / SKD / CKD |
| Specification | 7070×2360×2850mm |
| Trademark | Bioclean |
| Origin | Ningbo, China |
| HS Code | 8705909990 |
| Production Capacity | 5000PCS/Year |
| Package Size | 750.00cm × 220.00cm × 300.00cm |
|---|---|
| Package Gross Weight | 8000.000kg |
Friendly reminder:
The images shown below are new models. If you would like a used same model for cheaper price, please contact us for details! We await your further discussion, thank you.
| Serial Number | Component Name | Description |
|---|---|---|
| 1 | Chassis | Adopt a second-class chassis of a well-known brand, which has strong load-bearing capacity, advanced technology and reliable quality. It is used to realize functions such as the bearing of special mechanisms and the driving of the vehicle. Engine: Adopt a diesel engine of a well-known brand, which has strong power. |
| 2 | Water Tank | The water tank has a large volume and a long working time. The water tank is optimized in design using the finite element analysis method and has passed strict reliability tests. The water tank adopts the advanced one-time tank forming technology, and it has been detected by penetration non-destructive flaw detection, with no water leakage and a long service life. |

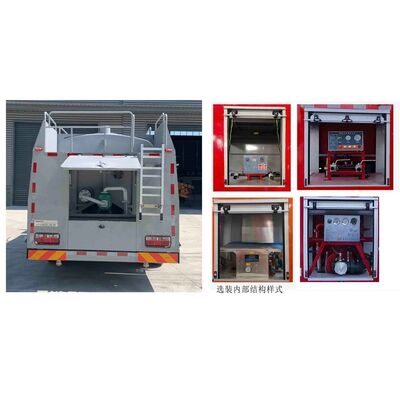

| 3 | Low-pressure Water Circuit System |
|
| 4 | Operation Mode | The vehicle adopts the control mode of "electric control pneumatic valve/solenoid valve". When starting and stopping the operation, the opening and closing of all nozzles except the water cannon are controlled through the operation box. |
The water sprinkler truck is equipped with a powerful sprinkler pump and diverse sprinkling devices. The front flushing device can cover 6 lanes at once with strong impact force, effectively removing dust, mud, and stubborn stains on the road surface. The rear sprinkling device has a sprinkling width of over 14 meters, evenly moistening the road and achieving remarkable dust suppression results. The long-range water cannon has a firing range of more than 50 meters, which can easily handle tasks such as road flushing, greening irrigation, and emergency firefighting, greatly improving the efficiency of sanitation operations.
It adopts an intelligent control mode of "electric control pneumatic valve/solenoid valve" and is equipped with a simple operation panel. Drivers can quickly switch between different operation modes such as front flushing, rear sprinkling, and water cannon operation through buttons in the cab, without complex operation procedures. At the same time, the visual liquid level display and alarm system can provide real-time feedback on the water volume in the tank, making it convenient to replenish water in a timely manner and ensuring more worry-free operation.
It selects second-class chassis from well-known brands and high-quality diesel engines, with strong load-bearing capacity and abundant power, ensuring the vehicle can drive stably under various complex road conditions. The water tank is optimized in design using finite element analysis, and has passed strict reliability tests and non-destructive flaw detection. Combined with the advanced one-time tank forming technology, it has excellent anti-leakage and anti-corrosion performance, a long service life, and reduces the occurrence of failures.
The components of the vehicle are reasonably arranged. Key components such as sprinkler pumps and valves adopt a modular design, which is convenient for disassembly and installation, facilitating daily inspection and maintenance. Meanwhile, sufficient maintenance space is reserved, and regular maintenance and fault troubleshooting do not require complex tools or professional skills, effectively reducing maintenance costs and time costs.
The vehicle body is equipped with complete safety devices, including check valves, pressure limiting valves, etc., to ensure the stable pressure of the water circuit system and prevent potential safety hazards caused by liquid backflow. The side guardrail is made of a combination of aluminum alloy and high-quality carbon steel, which is sturdy, beautiful, and can effectively protect the safety of pedestrians. The electrical system has a short-circuit self-protection function. Combined with a reliable grounding design, it comprehensively ensures safe operation throughout the process.
T/T with 30% deposit, and 70% balance will be paid before delivery. We will show you photos of the products and packages before you paying the balance.
1 set.
Naked packing, we transport our trailers by bulk cargo carrier, ro-ro or 40/45 HQ or land transportation.
Generally speaking, 30 workdays after we received 30% of contract value T/T down payment. The specific delivery time depends on the products and the quantity of your order.
If you are interested in our products, please feel free to contact me anytime! Welcome to hear from your inquiry!
