| Brand Name: | Bioclean |
| Model Number: | ZBJ5070GSSD6 |
| MOQ: | 1 |
| Price: | 10000 USD |
| Payment Terms: | T/T |
| Supply Ability: | 100unit/year |

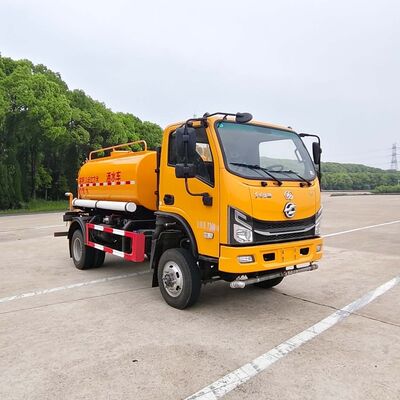

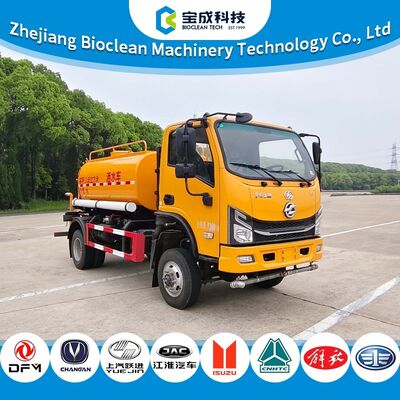

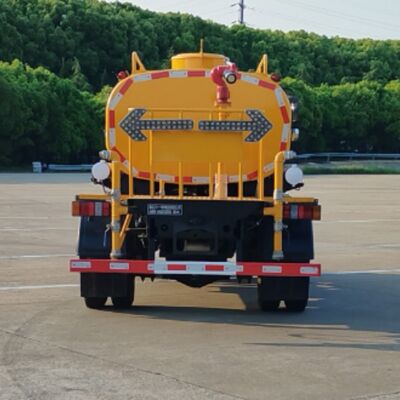

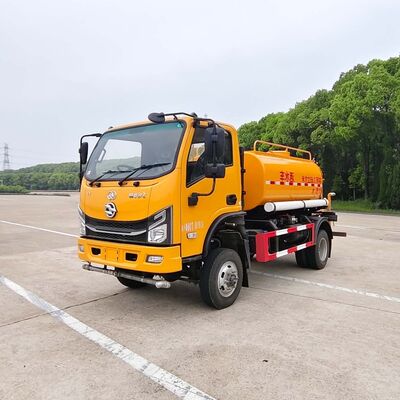

Water Sprinkling Customized Watering Tank Truck Water Spraying Truck designed for efficient construction and municipal operations.
Friendly reminder: The images shown below are of new units. If you're interested in used models at lower prices, please contact us for details!
| Specification | Details |
|---|---|
| Model Number | ZBJ5070GSSD6 |
| Volume | <5000L |
| Certification | ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE |
| Emission Standard | Euro 6 |
| Sprinkling Area | 10-16m |
| Transmission Type | Manual |
| Payload | 3500kg |
| Fuel | Diesel |
| Drive Wheel | 4×2 |
| Engine Capacity | <4L |
| Condition | New |
| Chassis | DFD5073TTL6DJ1 |
| Engine | YCF25160-66 |
| Maximum Speed | 110km/H |
| Approaching/Departure Angle | 33°/27° |
| Wheelbase | 2800,3035,3100,3300,3600,3800mm |
| Front/Rear Overhang | 1170/1510mm |
| Curb Weight | 3730kg |
| Rated Loading | 3500kg |
| Total Mass | 7360kg |
| Tank Material | Carbon Steel or Stainless Steel |
| Tank Thickness | 4mm/5mm/6mm |
| Effective Volume | 3.6m³ |
| Transport Package | Wooden Case / Iron Frame / Container / SKD / CKD |
| Specification | 5780×2100×2400mm |
| Trademark | Bioclean |
| Origin | Ningbo, China |
| HS Code | 8705909990 |
| Production Capacity | 5000PCS/Year |
| Package Size | 600.00cm × 230.00cm × 250.00cm |
| Package Gross Weight | 4000.000kg |

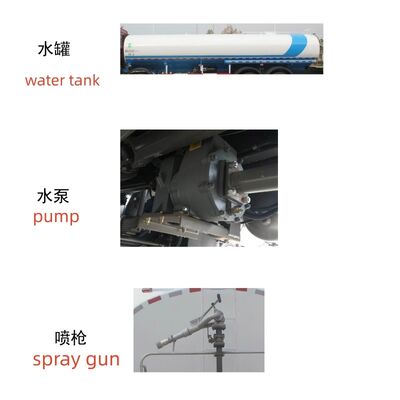

| Component | Description |
|---|---|
| Chassis | Second-class chassis from well-known brand with strong load-bearing capacity, advanced technology and reliable quality |
| Water Tank | Large volume with optimized design using finite element analysis, one-time tank forming technology with penetration non-destructive flaw detection |
| Low-pressure Water Circuit System | Self-priming two-stage centrifugal pump, front spraying, middle opposite flushing, rear sprinkling, and water cannon with 50m range |
| Operation Mode | Electric control pneumatic valve/solenoid valve with operation box control |
Equipped with powerful sprinkler pump and diverse sprinkling devices. Front flushing covers 6 lanes, rear sprinkling width over 14 meters, and water cannon with 50+ meter range for efficient dust suppression and cleaning.
Electric control pneumatic valve/solenoid valve system with simple operation panel. Visual liquid level display and alarm system for real-time water volume monitoring.
Second-class chassis from well-known brands with high-quality diesel engines. Water tank optimized with finite element analysis and one-time forming technology for excellent anti-leakage performance.
Modular design for key components with convenient disassembly and installation. Sufficient maintenance space reduces maintenance costs and time.
Complete safety devices including check valves, pressure limiting valves. Sturdy side guardrail and electrical system with short-circuit self-protection function.
T/T with 30% deposit, and 70% balance will be paid before delivery. We will show you photos of the products and packages before you paying the balance.
1 set.
Naked packing, we transport our trailers by bulk cargo carrier, ro-ro or 40/45 HQ or land transportation.
Generally speaking, 30 workdays after we received 30% of contract value T/T down payment. The specific delivery time depends on the products and the quantity of your order.
If you are interested in our products, please feel free to contact us anytime! Welcome to hear from your inquiry!
