| Brand Name: | Bioclean |
| Model Number: | ZBJ5040TYHSHBBEV |
| MOQ: | 1 |
| Price: | 8000 USD |
| Payment Terms: | T/T |
| Supply Ability: | 100unit/year |
| Model NO. | ZBJ5040TYHSHBBEV |
|---|---|
| Volume | ＜5000L |
| Certification | ISO9000, CCC, CE |
| Emission Standard | Euro 6 |
| Sprinkling Area | 8 - 12m |
| Transmission Type | Automatic |
| Payload | 1765,1665(kg |
| Fuel | Diesel |
| Drive Wheel | 4×2 |
| Engine Capacity | ＜4L |
| Condition | New |
| External Dimensions | 5320,5390×1660,1740×2185mm |
| Chassis | SH1047PCEVNZY2 |
| Engine | TZ290XS025 |
| Curb Weight | 2600,2700kg |
| Rated Loading | 1765,1665kg |
| Total Capacity | 4495kg |
| Max.Speed | 90km/H |
| Front/Rear suspension | 1090mm/1000mm |
| Tank Volume | 2m³ |
| Dedicated Device | Front spray rack,front point spray,rear handheld |
| Transport Package | Containerizing |
| Specification | Left Hand Drive Or Right Hand Drive |
| Trademark | Bioclean |
| Origin | Ningbo, China |
| HS Code | 8705909990 |
| Production Capacity | 500pieces/Year |
| Package Size | 580.00cm * 180.00cm * 220.00cm |
|---|---|
| Package Gross Weight | 3000.000kg |
Product Description:
Bioclean Brand Heavy-Duty Road Maintenance Truck for Efficient Infrastructure Repair
friendly reminder:
The images shown as below are new ones, if you would like a used same model for cheaper price, please contact us for details! wait for your futher discussion ,thanks .

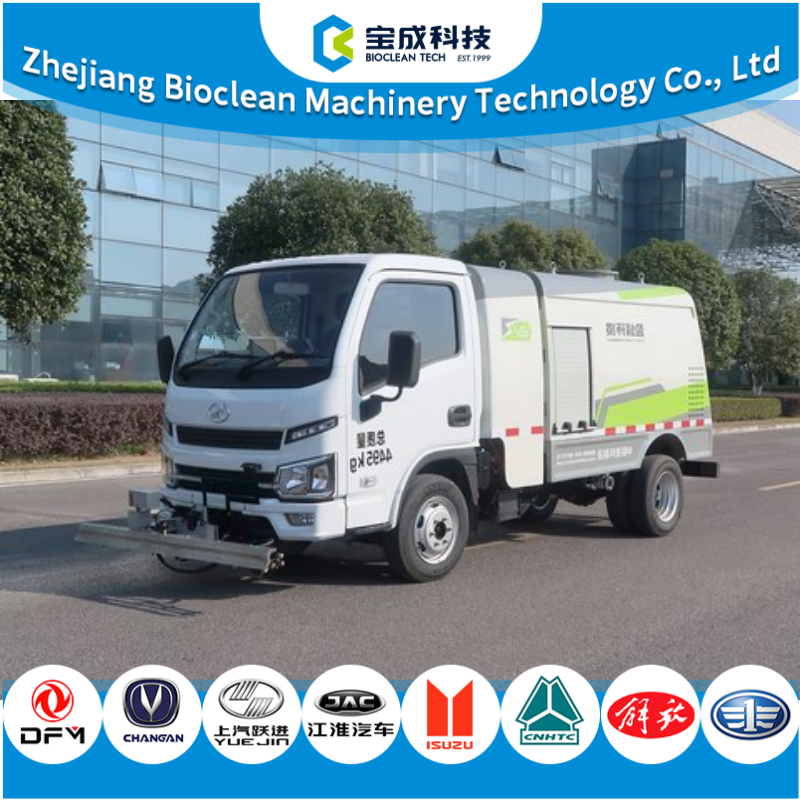

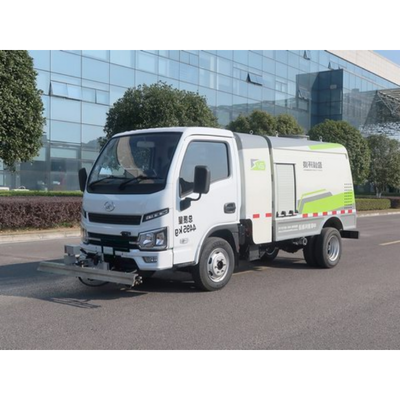

Our road maintenance vehicle is a highly efficient and multi-functional cleaning equipment, integrating functions such as ground flushing, stain removal, and facility maintenance. With its powerful high-pressure flushing system, flexible handheld spray gun, and adjustable front spray frame, it can easily handle various scenarios, including oil-stained roads, trash bin cleaning, and public facility advertisement removal. Its outstanding performance provides a reliable guarantee for urban environmental cleaning and maintenance.
| Component | Description |
|---|---|
| Chassis | The chassis SC1031XND64A is manufactured by Changan Automobile Co., Ltd. in Chongqing. It features excellent power, safety and reliability. Engine:The DAM16KR National VI gasoline engine produced by Harbin Dongan Engine Co., Ltd. is adopted. The rated power is 90kW, and the displacement is 1597ml. |
| Carriage | An integrated carriage is used. A stainless steel water tank is installed at the front of the carriage, and the rear part is the operation compartment. |
| Front - end Working Device | The front - end working device is composed of a cleaning rack and a spot - spray device. The long - strip - shaped cleaning rack is equipped with nearly ten high - pressure nozzles. These nozzles can perform high - pressure cleaning on the road surface in rows, spraying water downwards. Moreover, driven by the air cylinder, the cleaning rack can swing up and down, as well as left and right, enabling comprehensive and flexible cleaning of the road surface. The spot - spray device features a single high - pressure nozzle, which has a long spraying range. The nozzle can move up and down, and it swings left and right under the drive of the cleaning rack, thus achieving precise spot - cleaning. |
| Rear - end Working Device | Inside the rear operation compartment, a gasoline water pump is installed as the cleaning drive mechanism, providing the necessary power for water spraying. Additionally, a winch and a handheld high - pressure water gun are also equipped. The handheld high - pressure water gun can be used by operators to flush sidewalks or water greenery in the surrounding areas, offering great flexibility in different cleaning and maintenance tasks. |
| Operating System | The operating system is located within the cab and is an integrated console. It allows for independent opening and closing of the cleaning rack and the spot - spray device. Operators can also control the left - right and up - down movements of these devices through the console, ensuring convenient and precise operation during cleaning tasks. |

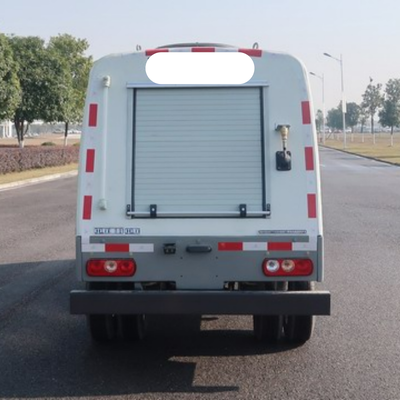

Rear-mounted High-pressure Flushing Gasoline Engine and Handheld Spray Gun
The rear-mounted high-pressure flushing gasoline engine is powerful. Paired with the handheld spray gun, it can generate high-pressure water flow, easily removing stubborn stains, sediment, and oil stains on the road surface. Whether it's urban streets, parking lots, or highways, it can achieve precise flushing and quickly restore the cleanliness of the road surface. The handheld spray gun is flexible to operate, making it convenient for targeted cleaning of narrow areas and corners, ensuring no cleaning blind spots.

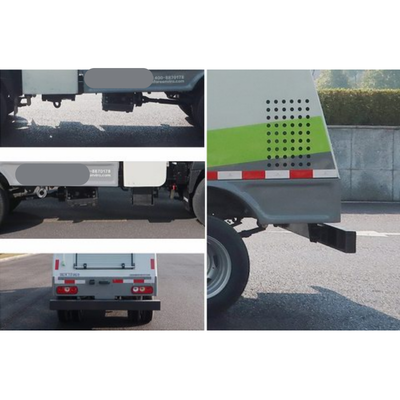

Side Door Design
The side door design is convenient and fast, greatly improving the efficiency of equipment maintenance and repair. When it is necessary to inspect, repair, or replace components of the internal equipment of the vehicle, the side door can provide a spacious operating space, reducing maintenance time and labor costs, and ensuring the continuous and efficient operation of the vehicle.

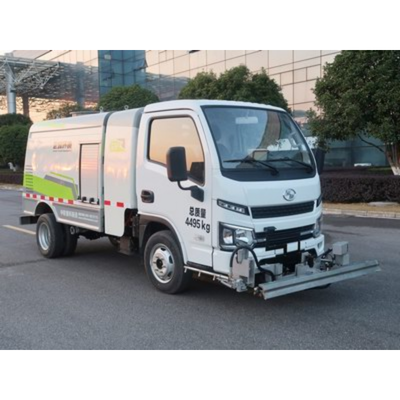

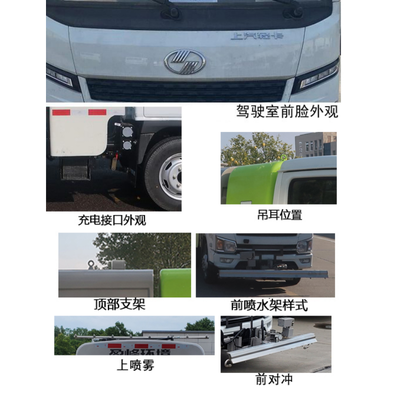

Front Spray Frame
The front spray frame is equipped with multiple nozzles, providing a wide coverage area for large-scale flushing of the road surface. During the vehicle's operation, the front spray frame can quickly flush the road surface, improving cleaning efficiency. At the same time, its spraying angle can be flexibly adjusted to meet different road conditions and cleaning requirements, achieving precise and efficient operations.
Ground Oil Stain Flushing
In areas with frequent oil stains, such as concentrated dining areas and around gas stations, the rear-mounted high-pressure flushing gasoline engine of the road maintenance vehicle works in conjunction with the handheld spray gun, releasing a strong high-pressure water flow that instantly breaks down stubborn oil stains. The front spray frame can also carry out large-area flushing, quickly restoring the cleanliness of the road surface and eliminating the slipping hazards caused by oil stains.
Strong Removal of Small Advertisements on Utility Poles
Facing stubborn small advertisements on public facilities such as utility poles and walls, the high-pressure water flow of the handheld spray gun can easily peel them off. The spot spray device can also precisely locate and focus on flushing the remaining glue and corner parts, restoring the clean appearance of public facilities and helping to enhance the urban image.
Trash Bin Cleaning
For trash bins in communities and beside streets, the handheld spray gun of the vehicle can reach deep into the bins to precisely flush the stains and odors on the inner walls and bottoms. The side door design facilitates the quick replenishment of cleaning water, efficiently completing the daily cleaning and maintenance of trash bins and maintaining the environmental hygiene of the surrounding areas.
Q1. What is your terms of payment?
T/T with 30% deposit, and 70% balance will be paid before delivery.We will show you photos of the products and packages before you paying the balance.
Q2. What's your minimum quantity?
1 set.
Q3. What is your packing?
Naked packing, we transport our trailers by bulk cargo carrier, ro-ro or 40/45 HQ or land transportation.
Q4. How about delivery time?
Generally speaking, 30 workdays after we received 30% of contract value T/T down payment. The specific delivery time depends on the products and the quantity of your order.
