25 Ton Pure Electric Compactor Garbage Truck with Lithium Iron Phosphate Battery and Zero-Emission Rear Loader Waste Collection Vehicle

Brand Name:	Bioclean
Model Number:	ZBJ5040TSLDFBEV
MOQ:	1 pc
Price:	$10000-$80000
Payment Terms:	L/C,T/T
Supply Ability:	5000pcs/year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Model Number:

ZBJ5040TSLDFBEV

Maximum Speed:

89 Kilometers Per Hour

Gross Weight:

4495 Kg

Curb Weight:

3900 Kg Or 4200 Kg

Payload Mass:

165 Kg Or 465 Kg

Overall Length:

5365 Mm Or 5565 Mm

Packaging Details:

Containerizing

Supply Ability:

5000pcs/year

Product Description

Pure Electric Compactor Garbage Truck 25 Ton Rear Loader Waste Collection Vehicle

Basic Vehicle Overview

Model: ZBJ5040TSLDFBEV

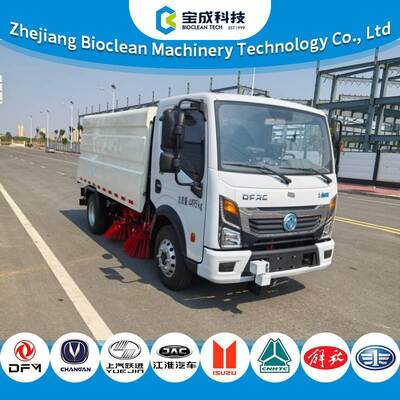

This pure electric road sweeper is mounted on a Dongfeng light-duty electric chassis (model EQ1045TACEVJ) and represents zero-emission new energy sanitation equipment. Fully powered by lithium iron phosphate battery with no fuel consumption, it meets urban low-carbon environmental requirements.

The vehicle features a 2-axle 4x2 layout with a maximum design speed of 89 km/h and a cab capacity for 2 people. Standard ABS anti-lock braking system ensures stable braking during full-load cleaning operations.

Weight Specifications

Parameter	Specification
Gross Vehicle Weight	4495 kg
Curb Weight Options	3900 kg / 4200 kg
Rated Payload Options	165 kg / 465 kg
Axle Load Distribution	Front: 1800 kg, Rear: 2695 kg

Dimensions

Dimension	Specification
Overall Length	5365 mm / 5565 mm (optional)
Overall Width	1880 mm
Overall Height	2220 mm
Front Overhang	1040 mm
Rear Overhang	1325 mm
Approach/Departure Angle	22°/16° or 15°/16° (selectable)
Wheelbase	3000 mm

Tire & Suspension Configuration

Total Tires: 6

Tire Specification: 6.50R16LT 12PR for light commercial heavy load

Suspension: Standard leaf spring suspension for both front and rear axles, providing stable bearing capacity during continuous road sweeping operations.

Electric Power System

Battery Type: Lithium Iron Phosphate

Supplier: CATL

Cell Model: CB780

Battery Pack Model: L268D02

Motor Type: Permanent Magnet Synchronous

Supports national standard DC fast charging to minimize charging intervals. The electric drive system operates with low noise and zero tailpipe emissions, significantly reducing daily operation and maintenance costs compared to diesel sweepers.

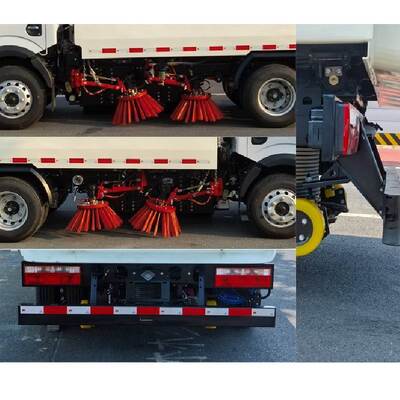

Sweeping Equipment

Core components include garbage bin, high-pressure centrifugal fan, and road sweeping brush system.

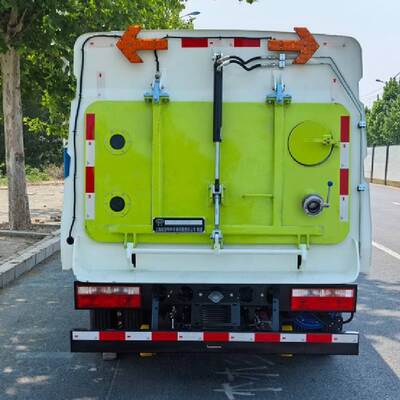

Closed garbage storage tank effectively contains dust and sewage to prevent secondary environmental pollution

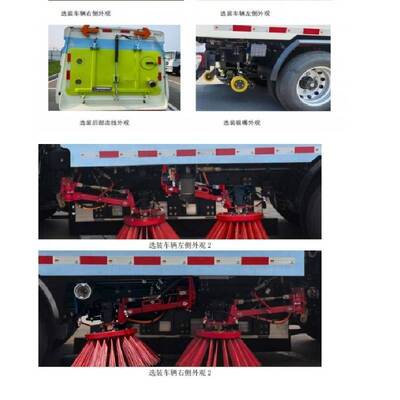

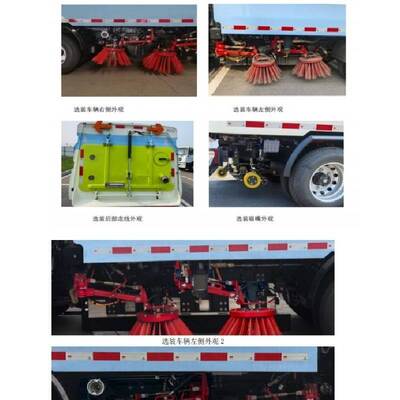

Multiple side sweeping brushes and middle suction nozzle work together to collect road surface dust, sand, and litter automatically
High-pressure fan provides strong negative pressure suction to lift debris into the onboard bin
Electric control panel in cab allows operators to start, stop, and adjust sweeping speed
Emergency manual control buttons reserved at rear working platform
All hydraulic and pneumatic components feature overpressure protection design for extended service life

Cab Features

Original Dongfeng light commercial cab equipped with:

Integrated air conditioner
Power windows
Central door lock
LCD digital instrument panel
Bluetooth audio system

Large split wide-view rearview mirrors and halogen headlights ensure clear vision for day and night sanitation work. The cab features lightweight tipping design for easy maintenance of chassis power and battery components.
