10m³ Vacuum Suction Truck for Well Kiln Sludge and Mine Industrial Sewage

Brand Name:	Bioclean
Model Number:	ZBJ5182GXWE6
MOQ:	1
Price:	105000
Supply Ability:	500unit/year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO,CCC

Chassis Brand & Model:

DFH1180EX8

Engine:

D6.7NS6B230

Maximum Speed:

89(km/h)

Approach/Departure Angle:

17/15,19/15(°)

Axle Load:

6500/11500

Front/Rear Overhang:

1430/1990

Curb Weight:

10100(Kg)

Rated Loading:

7770(Kg)

Total Mass:

18000(Kg)

Tank Material:

Carbon Steel Q235A

Tank Anti-Corrosion Treatment:

Polyethylene (PE) Lining/Epoxy Resin Coating/Rubbe

Vacuum Pump Brands:

Optional

Packaging Details:

Containerizing

Supply Ability:

500unit/year

Product Description

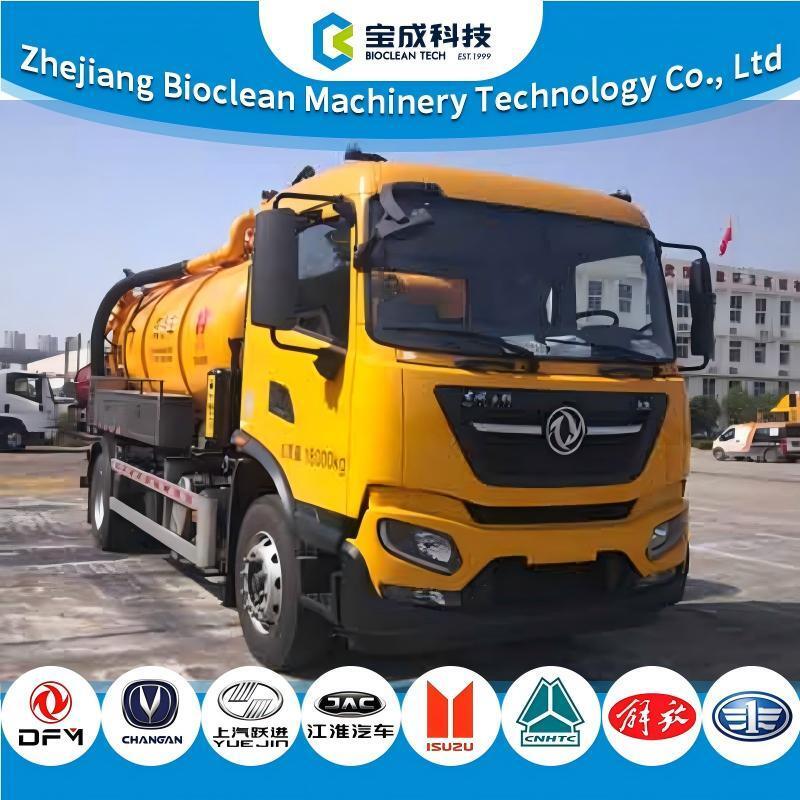

10m³ Vacuum Suction Truck for Well Kiln Sludge and Mine Industrial Sewage 0

As an innovative pioneer in waste management solutions, we specialize in developing high-performance vacuum sewage suction trucks tailored to global market needs. Our products are equipped with EU-standard engines (336 hp) and 6mm carbon steel tanks (16-34 m³ capacity), providing durable and efficient operational support for municipal, industrial, and environmental sectors.

Customization Advantages:

Flexible Configuration: Optional 4x2/6x4 chassis, manual/auto transmission, and modular accessories such as oil-water separators and self-unloading functions
Industry Compliance: Certified with ISO, CE, 3A, and other international standards, meeting strict requirements for food, pharmaceutical, and biohazardous waste treatment

Diversified Service System:

Full Lifecycle Coverage: New/used equipment solutions - certified used machines undergo rigorous testing and come with extended warranties, balancing cost and performance
Global Support Network: 24/7 technical response, spare parts logistics, and on-site operation training to maximize equipment uptime

Cooperative Value:

End-to-End Services: Value-added support spanning the entire equipment lifecycle, from solution design to after-sales maintenance
Cost-Effective Solutions: Competitive pricing combined with containerized transportation advantages for seamless global delivery

Optional Configurations	Engine Upgrade (e.g., Euro V/Euro VI Engine)
	Aluminum Alloy (5083)
	High-Vacuum Pump (e.g., Rotary Vane Pump)
	Intelligent Monitoring System
	Multilingual Control Panel
	Anti-Overflow Alarm Device
	Quick-Connect Fittings & Multi-Size Suction Hoses
	Hydraulic Drive System
	Self-Cleaning Flushing System
	Overload Protection Device
	Anti-overflow Valve
Tropical Regions	Anti-UV Thermal Insulation Coating
	High-Efficiency Cooling System
	Moisture-Resistant Electrical Components
	Corrosion-Resistant Sealing Gaskets
	High-Flow Cooling Water Pump
Cold Regions	Tank Thermal Insulation Layer
	Engine Preheating System
	Battery Heater
	Anti-Freeze Vacuum Pump Oil
	Suction Hose Heating Tape
	Low-Temperature-Resistant Rubber Parts
	Drain Valve Heat Tracing System

10m³ Vacuum Suction Truck for Well Kiln Sludge and Mine Industrial Sewage 14

10m³ Vacuum Suction Truck for Well Kiln Sludge and Mine Industrial Sewage 15

A fecal suction truck consists of components like a liquid tank, vacuum pump, water-gas separator, four-way valve, etc., forming a complete vacuum system. When the vacuum pump operates, it gets power from the gearbox's power take-off. The eccentric rotation of blades inside the rotating core removes air from the liquid tank, creating negative pressure to suck liquid in using the pressure difference between the atmosphere and the tank.

During operation, the humid air in the tank first goes to the water-gas separator for water separation. Then the gas reaches the vacuum pump's inlet via the four-way valve, mixes with oil in the pump, and is ejected. After separation by a coarse and a fine filter, the gas is released. Once vacuum is formed, sewage is drawn in. To discharge, the four-way valve changes the airflow direction, and the pump forces air in to push the liquid out, with other parts working as in suction.
