| Brand Name: | Bioclean |
| Model Number: | ZBJ5120GSSC |
| MOQ: | 1 |
| Price: | 10999 USD |
| Payment Terms: | T/T |
| Supply Ability: | 100unit/year |
| Serial Number | Component Name | English Description |
|---|---|---|
| 1 | Chassis | Chassis: Adopt a second-class chassis of a well-known brand, which has strong load-bearing capacity, advanced technology and reliable quality. It is used to realize functions such as the bearing of special mechanisms and the driving of the vehicle. Engine: Adopt a diesel engine of a well-known brand, which has strong power. |
| 2 | Water Tank | The water tank has a large volume and a long working time. The water tank is optimized in design using the finite element analysis method and has passed strict reliability tests. The water tank adopts the advanced one-time tank forming technology, and it has been detected by penetration non-destructive flaw detection, with no water leakage and a long service life. |

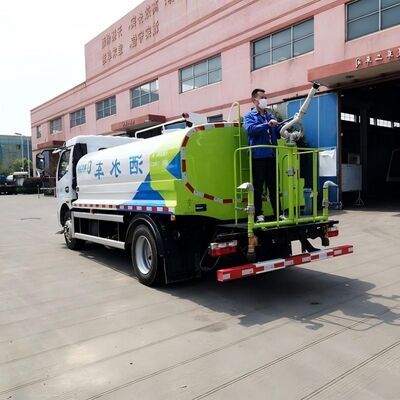

| 3 | Low-pressure Water Circuit System | Low-pressure Water Pump: Adopt a self-priming two-stage centrifugal pump from a renowned enterprise, which has high efficiency and good reliability. Front Spraying Device: There is a pair of duckbill-shaped forward nozzles under the front of the cab, which can perform forward fan-shaped spraying and cover 3 lanes at a time. Middle Opposite Flushing: There is one conical nozzle on each side of the opposite flushing device under the tank body for two-way flushing. By loosening the two rotating sleeves at the nozzles, the nozzle angle can be adjusted arbitrarily. The front opposite flushing can wash 6 lanes at a time. Rear Sprinkling Device: The rear sprinkling device is arranged on the vertical water pipes on both sides of the rear platform. The upper part of the water pipe is a duckbill-shaped nozzle facing left and right sides, and the lower part is a circular nozzle. When the two rear sprinkling nozzles are turned on at the same time, the sprinkling width is not less than 14m. Water Cannon: The water cannon is an aluminum-made long-range water cannon, installed on the right side of the rear workbench. The water cannon can rotate 0° to 360°, and the cannon body can be operated to pitch up and down. By turning the adjustment sleeve at the front of the cannon body forward and backward, the spraying shape (columnar or conical) of the water flow can be adjusted and the water cannon can be closed. The water cannon is controlled by a manual ball valve, and the water cannon can be opened and closed arbitrarily during operation. The firing range of the water cannon is not less than 50m. |
| 4 | Operation Mode | The vehicle adopts the control mode of "electric control pneumatic valve/solenoid valve". When starting and stopping the operation, the opening and closing of all nozzles except the water cannon are controlled through the operation box. |
