Sewage Suction Truck
>
Heavy-Duty 12-Ton Sewage Suction Truck with Customized Tank Volume and Robust Chassis for Sanitation

Heavy-Duty 12-Ton Sewage Suction Truck with Customized Tank Volume and Robust Chassis for Sanitation

Brand Name: Bioclean
Model Number: ZBJ5120GXWE512
MOQ: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 100
Detail Information
Engine:
YCY30165-60
Chassis:
EQ1125SJ8CDC
Dimension:
6850×2250×2950 Mm
Weight:
11995 Kg
Curb Weight:
5600 Kg
Maximum Speed:
95 Km/h
Supply Ability:
100
Highlight:

12-ton sewage suction truck

,

customized tank volume sewage truck

,

robust chassis sanitation truck

Product Description
Heavy-Duty 12-Ton Sewage Suction Truck For Sanitation Customized Tank Volume
High-Performance Sewage Suction Truck with Optional Arm Support and Custom Tank Features
Key Specifications
Specification Details
Chassis Wheelbase 3360mm
Tank Dimensions (Diameter x Length) 1400 x 3692mm (including head)
Total Tank Capacity 4.77 cubic meters
Effective Tank Volume 4.58 cubic meters
Vehicle Height (with optional arm) 2605mm
Vehicle Height (standard, no arm) 2590mm
Product Features
  • Equipped with specialized tanks and vacuum systems for efficient collection and cleaning of feces and sewage
  • Optional arm support device available for enhanced functionality
  • Multiple customization options including liquid level switch, manhole cover style, sewage outlet style
  • Anti-overflow valve, water tank, pipeline, and camera installation options
  • Flexible pipeline layout and liquid level gauge configurations

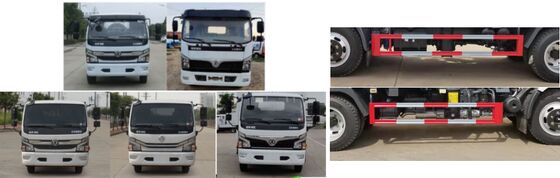

  • Side protection material: Q235A, connected by bolts

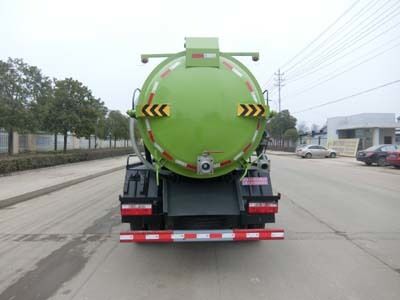

  • Rear protection material: Q235A, connected by bolts
  • Rear protection cross-section: 120*60mm or 100*50mm with 405mm ground clearance
  • Chassis equipped with ABS system (CM4XL-4S/4M by Guangzhou Ruili Kemi Automotive Electronics Co., Ltd)

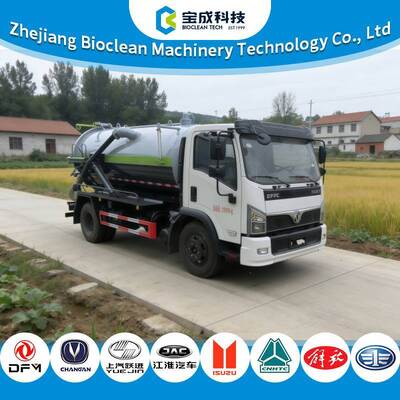

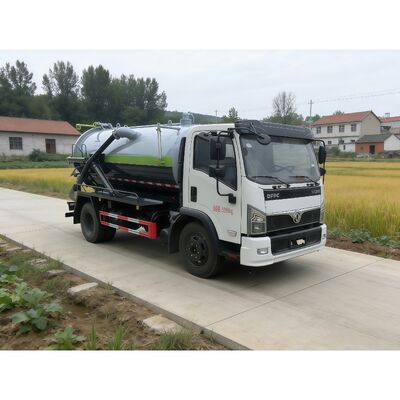

Heavy-Duty 12-Ton Sewage Suction Truck with Customized Tank Volume and Robust Chassis for Sanitation 0
Heavy-Duty 12-Ton Sewage Suction Truck with Customized Tank Volume and Robust Chassis for Sanitation 1
Company Profile

Zhejiang Bioclean Machinery Technology Co., Ltd. is a veteran-founded company integrating ecological environment consulting and design, R&D and manufacturing of environmental sanitation machinery and equipment, urban comprehensive services, and integrated investment and operation of environmental sanitation projects. We are a technology-oriented national high-tech enterprise.

Bioclean Company has been deeply rooted in the industry for over 20 years, carefully crafting the industrial ecological chain of 'manufacturing supports service industry, and service industry drives manufacturing industry'. After more than 20 years of deep cultivation in the industry, we have built a robust industrial ecosystem. We devote ourselves to the national sanitation industry with the sentiment of a craftsman, utilizing intelligent sanitation equipment and management platforms to maintain our position at the industry forefront.

Heavy-Duty 12-Ton Sewage Suction Truck with Customized Tank Volume and Robust Chassis for Sanitation 2
