| Brand Name: | Bioclean |
| Model Number: | ZBJ5160TXCE6 |
| MOQ: | 1 |
| Price: | 10000 USD |
| Payment Terms: | T/T |
| Supply Ability: | 200unit/year |
| Component | Description |
| Chassis | Chassis: A well - known brand of second - class chassis is adopted, which has strong bearing capacity, advanced technology, and reliable quality. It is used to realize the functions of carrying special mechanisms and vehicle driving. Engine: A well - known brand of diesel engine is adopted, providing powerful driving force. |
| Auxiliary Engine | A well - known brand of gasoline engine is used as the auxiliary engine to drive cleaning and other mechanisms. |

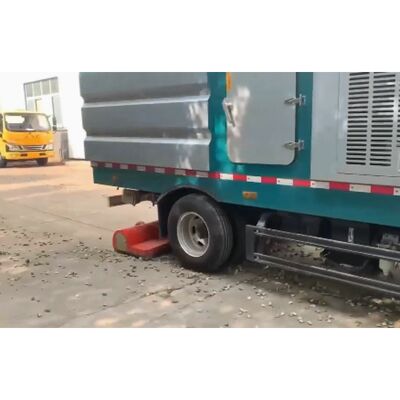

| Suction Nozzle | The horseshoe - shaped follow - up ordinary suction nozzle can automatically level according to the ground conditions, with strong cleaning ability and high cleaning speed. The suction nozzle features a short front overhang and a large ground clearance, ensuring good vehicle passability during transit. |
| Cleaning Device | The cleaning device has the functions of automatic obstacle avoidance protection and automatic reset. When the sweeper disc encounters an obstacle, it will automatically retract and then automatically reset after passing the obstacle. This function effectively solves the problem of easy damage to the cleaning device. It also has the advantages of simple structure, convenient installation and use, wide application range, high work efficiency, and low maintenance cost. |
| Garbage Bin | The garbage bin is made of full 304 stainless steel plates, with a full - plate frameless structure. The inner layer is smooth, corrosion - resistant, and does not stick to garbage, making unloading and cleaning convenient. |
| Fan | The motor is directly connected to the fan for driving. Users can freely adjust the fan speed according to their needs. It has a strong suction force and can clean up common road garbage, sand, small stones, and light floating objects. |
| Safety Protection System | It has functions such as automatically lifting the suction nozzle when reversing and protecting the garbage bin support rods. It also provides various voice safety prompts for opening the rear door of the garbage bin, dumping garbage, and during operation. A balance valve group is installed on the lifting cylinder of the garbage bin to prevent the garbage bin from falling during lifting. At the same time, an alarm device for lowering the safety support rod is provided to ensure the safe lowering of the garbage bin through multiple protection measures. |
| Operation Mode | The vehicle adopts a control mode of "display screen + controller + CAN bus operation panel". When starting and stopping the operation, the operation devices such as motor speed control, suction nozzle lifting, and sweeper disc retraction and extension can all be controlled with one - key operation, which is simple to operate, effectively reduces the driver's work intensity, and improves safety. The working status of the vehicle can be monitored in real - time. |
