| Brand Name: | Bioclean |
| Model Number: | ZBJ5180GQW6ACC |
| MOQ: | 1 pc |
| Price: | $10000-$90000 |
| Payment Terms: | T/T |
| Supply Ability: | 5000 pcs/ year |

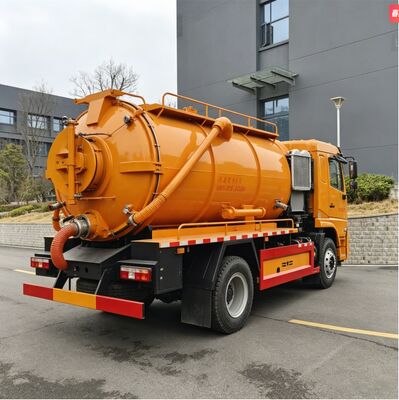

As an innovative pioneer in waste management solutions, we specialize in developing high-performance vacuum sewage suction trucks tailored to global market needs. Our products are equipped with EU-standard engines (336 hp) and 6mm carbon steel tanks (16-34 m³ capacity), providing durable and efficient operational support for municipal, industrial, and environmental sectors.
Customization Advantages:
Diversified Service System:
Cooperative Value:
| General Optional Configurations & Regional Differentiated Configurations |
| Optional Configurations |
Engine Upgrade (e.g., Euro V/Euro VI Engine) |
| Aluminum Alloy (5083) | |
| High-Vacuum Pump (e.g., Rotary Vane Pump) | |
| Intelligent Monitoring System | |
| Multilingual Control Panel | |
| Anti-Overflow Alarm Device | |
| Quick-Connect Fittings & Multi-Size Suction Hoses | |
| Hydraulic Drive System | |
| Self-Cleaning Flushing System | |
| Overload Protection Device | |
| Anti-overflow Valve | |
|
Tropical Regions
|
Anti-UV Thermal Insulation Coating |
| High-Efficiency Cooling System | |
| Moisture-Resistant Electrical Components | |
| Corrosion-Resistant Sealing Gaskets | |
| High-Flow Cooling Water Pump | |
|
Cold Regions
|
Tank Thermal Insulation Layer |
| Engine Preheating System | |
| Battery Heater | |
| Anti-Freeze Vacuum Pump Oil | |
| Suction Hose Heating Tape | |
| Low-Temperature-Resistant Rubber Parts | |
| Drain Valve Heat Tracing System |
A fecal suction truck consists of components like a liquid tank, vacuum pump, water-gas separator, four-way valve, etc., forming a complete vacuum system. When the vacuum pump operates, it gets power from the gearbox's power take-off. The eccentric rotation of blades inside the rotating core removes air from the liquid tank, creating negative pressure to suck liquid in using the pressure difference between the atmosphere and the tank.
During operation, the humid air in the tank first goes to the water-gas separator for water separation. Then the gas reaches the vacuum pump's inlet via the four-way valve, mixes with oil in the pump, and is ejected. After separation by a coarse and a fine filter, the gas is released. Once vacuum is formed, sewage is drawn in. To discharge, the four-way valve changes the airflow direction, and the pump forces air in to push the liquid out, with other parts working as in suction.
