8600L Large Capacity Vacuum Sewage Suction Truck

All Category

Truck Parts

Mrs. Shirley

shirley@roadcleaningtruck.com

+86 13023725111

Chat Now

8600L Large Capacity Vacuum Sewage Suction Truck

Brand Name:	Bioclean
Model Number:	ZBJ5181GQWD6
MOQ:	1pc
Price:	$20000-$50000
Payment Terms:	T/T
Supply Ability:	5000pcs/ year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Tank Volume:

8600L

Engine Power:

150-250hp

Maximum Speed:

89km/h

Curb Weight:

11205kg

Tank Material:

Carbon Steel Q235B/Stainless Steel 304/316

Tank Thickness:

3-8mm

Packaging Details:

Nude Cargo Shipping/Skid/Frame Packaging

Supply Ability:

5000pcs/ year

Product Description

Basic Info.

Model NO.

ZBJ5181GQWD6

Certification

ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE

Emission Standard

Euro 6

Payload

3900(Kg)

Transmission Type

Automatic

Fuel

Diesel

Tank Volume

8600L

Drive Wheel

4x2

Hoesrpower

150-250hp

Condition

New

Chassis Brand & Model

Dongfeng/DFH1180EX8

Engine

D4.5NS6B190

Maximum Speed

89(km/h)

Approach/Departure Angle

17/13(°)

Axle Load

6500/11500

Front/Rear Overhang

1400/2925,1430/2895,1400/2900,1430/2870,1400/2600

Curb Weight

11205(Kg)

Rated Loading

6600,6665(Kg)

Total Mass

18000(Kg)

Tank Material

Carbon Steel Q235B/Stainless Steel 304/316

Tank Thickness

3-8mm

Tank Anti-Corrosion Treatment

Polyethylene (PE) Lining/Epoxy Resin Coating/Rubbe

Vacuum Pump Brands

Optional

Suction Hose Length

8-15m

Suction Hose Diameter

80-100mm/100-150mm/DN125 ABS Pipe

Transport Package

Nude Cargo Shipping/Skid/Frame Packaging

Specification

8825, 9000×2550×3450, 3570, 3650(mm)

Trademark

BIOCLEAN TECH

Origin

China

HS Code

8705909990

Production Capacity

2000

Packaging & Delivery

Package Size

900.00cm * 260.00cm * 310.00cm

Package Gross Weight

18000.000kg

As an innovative pioneer in waste management solutions, we specialize in developing high-performance vacuum sewage suction trucks tailored to global market needs. Our products are equipped with EU-standard engines (336 hp) and 6mm carbon steel tanks (16-34 m³ capacity), providing durable and efficient operational support for municipal, industrial, and environmental sectors.

Customization Advantages:

Flexible Configuration: Optional 4x2/6x4 chassis, manual/auto transmission, and modular accessories such as oil-water separators and self-unloading functions
Industry Compliance: Certified with ISO, CE, 3A, and other international standards, meeting strict requirements for food, pharmaceutical, and biohazardous waste treatment

Diversified Service System:

Full Lifecycle Coverage: New/used equipment solutions - certified used machines undergo rigorous testing and come with extended warranties, balancing cost and performance
Global Support Network: 24/7 technical response, spare parts logistics, and on-site operation training to maximize equipment uptime

Cooperative Value:

End-to-End Services: Value-added support spanning the entire equipment lifecycle, from solution design to after-sales maintenance
Cost-Effective Solutions: Competitive pricing combined with containerized transportation advantages for seamless global delivery

General Optional Configurations & Regional Differentiated Configurations

Optional Configurations	Engine Upgrade (e.g., Euro V/Euro VI Engine)
	Aluminum Alloy (5083)
	High-Vacuum Pump (e.g., Rotary Vane Pump)
	Intelligent Monitoring System
	Multilingual Control Panel
	Anti-Overflow Alarm Device
	Quick-Connect Fittings & Multi-Size Suction Hoses
	Hydraulic Drive System
	Self-Cleaning Flushing System
	Overload Protection Device
	Anti-overflow Valve
Tropical Regions	Anti-UV Thermal Insulation Coating
	High-Efficiency Cooling System
	Moisture-Resistant Electrical Components
	Corrosion-Resistant Sealing Gaskets
	High-Flow Cooling Water Pump
Cold Regions	Tank Thermal Insulation Layer
	Engine Preheating System
	Battery Heater
	Anti-Freeze Vacuum Pump Oil
	Suction Hose Heating Tape
	Low-Temperature-Resistant Rubber Parts
	Drain Valve Heat Tracing System

A fecal suction truck consists of components like a liquid tank, vacuum pump, water-gas separator, four-way valve, etc., forming a complete vacuum system. When the vacuum pump operates, it gets power from the gearbox's power take-off. The eccentric rotation of blades inside the rotating core removes air from the liquid tank, creating negative pressure to suck liquid in using the pressure difference between the atmosphere and the tank.

During operation, the humid air in the tank first goes to the water-gas separator for water separation. Then the gas reaches the vacuum pump's inlet via the four-way valve, mixes with oil in the pump, and is ejected. After separation by a coarse and a fine filter, the gas is released. Once vacuum is formed, sewage is drawn in. To discharge, the four-way valve changes the airflow direction, and the pump forces air in to push the liquid out, with other parts working as in suction.

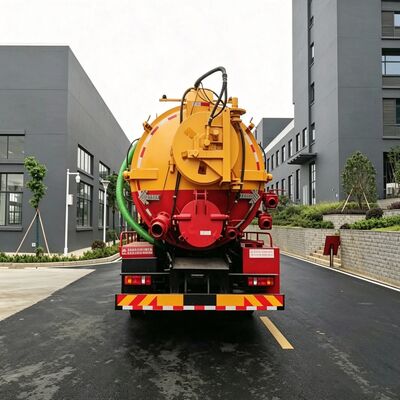

8600L Large Capacity Vacuum Sewage Suction Truck 3

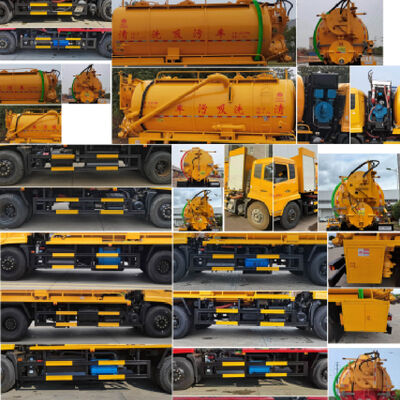

8600L Large Capacity Vacuum Sewage Suction Truck 5

Zhejiang Bioclean Machinery Technology Co., Ltd., a National High-Tech Enterprise in China, specializes in the research, development, manufacturing, sales, and service of sanitation machinery, specialized sanitation vehicles, new energy vehicles, and complete sets of kitchen waste treatment equipment. Founded in 1999, our headquarters is located in Ningbo Jiangbei Industrial Park, occupying over 70 mu of land with a specialized manufacturing and service base spanning 60,000 square meters-an integrated modern production system covering the entire industrial chain.

Catering to global market demands, we offer overseas clients full-process solutions for used sanitation machinery and specialized vehicles, including professional services such as inspection, evaluation, refurbishment, and export logistics. Driven by technological innovation, we are committed to providing green sanitation equipment and comprehensive environmental governance solutions worldwide.

We sincerely welcome new and existing clients from home and abroad to visit our production base, explore collaboration opportunities, and join us in shaping a smarter future for urban sanitation.
