| Brand Name: | Bioclean |
| Model Number: | ZBJ5250GSSD6 |
| MOQ: | 1pc |
| Price: | Negotiation |
| Payment Terms: | T/T |
National High-Tech Enterprise Technology-Oriented Company for Ecological Environment Solutions
Product Features

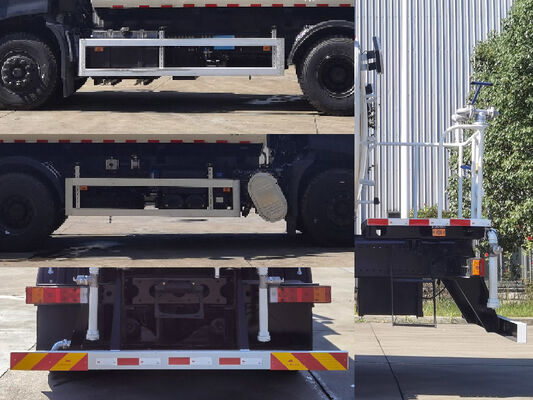

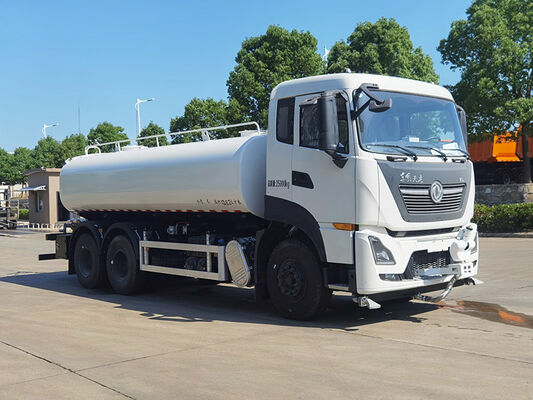

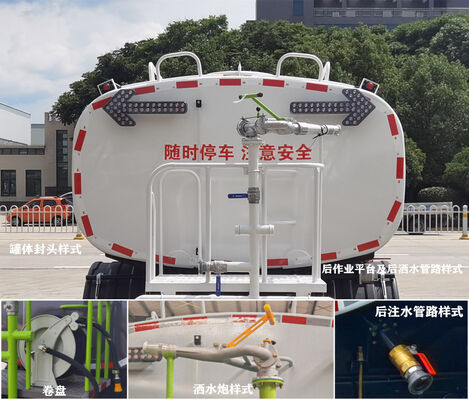

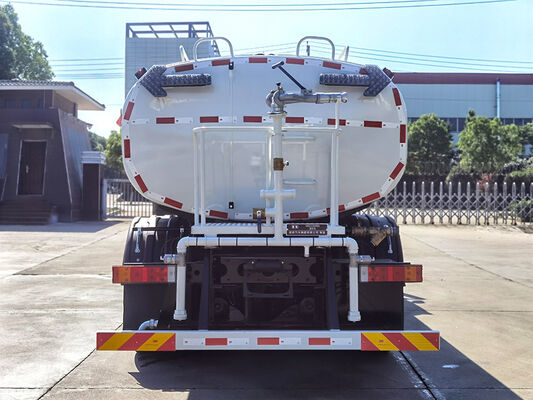

The main devices of the vehicle are water tank, waterway and operation devices, which are mainly used for spray disinfection operations and epidemic prevention in streets, squares, communities, etc; Battery type/Energy storage device assembly manufacturer: Lithium iron phosphate battery/CATL New Energy Technology Co., Ltd; Drive motor model/manufacturer: TZ375XSSF-SZF611/Shaanxi Fast Gear Co., Ltd; Individual type/model/manufacturer of energy storage device: Lithium iron phosphate battery/CB220/CATL New Energy Technology Co., Ltd; Rated power: 105kW; Peak power: 175kW; ABS model/manufacturer: ABS-E/ZF Commercial Vehicle Systems (Qingdao) Co., Ltd; The side and rear protective materials are all Q235, and the connection method for the side protection is bolt connection, while the connection method for the rear protection is bolt connection; Rear lower protection section size (mm): 80 × 160, rear protection height above ground 440mm; Effective volume of the tank: 10.6 cubic meters, total capacity of the tank: 11.14 cubic meters, transportation medium is disinfectant, medium density is 850 kg/cubic meter, external dimensions of the tank (mm) (length x long axis x short axis): 5000 × 2230 × 1420; When the rear fog cannon structure is optional and the curb weight is 8720kg, the corresponding relationship between the number of passengers allowed in the cab (person) and the rated load capacity (kg) is 3/9085,2/9150; When the rear structure without fog cannon is optional and the curb weight is 8655kg, the corresponding relationship between the number of passengers allowed in the cab (person) and the rated load capacity (kg) is 3/9150,2/9215; When installing the front electronic spray gun, the forward extension is 580mm, and the corresponding relationship between the overall vehicle length/forward extension/front suspension/wheelbase/rear suspension is (mm): 8560/580/1270/4500/2210; When not equipped with a front electronic spray gun, the corresponding relationship between the overall length/front extension/front suspension/wheelbase/rear suspension of the vehicle is (mm): 7980/0/1270/4500/2210; Optional front without electronic spray gun, optional rear platform without fog gun machine, optional rear fog gun machine style, optional front electronic spray gun style, optional rear without arrow light, this model can be equipped with ETC onboard device
