Road Sweeper Truck

Pure Electric Severe Dust Street Cleaning Road Sweeper Vacuum Truck Euro 6 Emission Standard 2mm Tank Thickness

All Category

Biomass Pellet Machine

Mr. Gavin Tan

admin@biocleannb.com

+86 13023726111

Contact Now

Pure Electric Severe Dust Street Cleaning Road Sweeper Vacuum Truck Euro 6 Emission Standard 2mm Tank Thickness

Brand Name:	Bioclean
Model Number:	ZBJ5122TXCEV-H1
MOQ:	1
Price:	US$29,999.00-US$38,889.00
Packaging Details:	Standard Packing
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Ningbo,China

Certification:

ISO9000,CCC,CE

Model NO.:

ZBJ5122TXCEV-H1

Type:

Sweep And Suck Type

Certification:

ISO9000, CCC, CE

Emission Standard:

Euro 6

Fuel:

Pure Electric

Cleaning Process:

Cold Water Cleaning

Condition:

Chassis:

BJ1128EVJA1

Engine:

FTTB080C

Curb Weight:

9030kg

Rated Loading:

3260kg

Total Capacity:

12490kg

Sweeping Efficiency:

Maximum Speed:

85km/H

F/R Overhang:

1130/1960

Dustbin Volume:

1.5m³

Tank Volume:

0.8m³

Sweeping Width:

Tank Material:

Stainless Steel

Tank Thickness:

Specification:

7290× 2380× 2710(mm)

Trademark:

Bioclean

Origin:

Ningbo, China

HS Code:

8705909990

Supply Ability:

500PCS/YESR

Highlight:

Euro 6 Pure Electric Sweeper Truck

Euro 6 sweeper vacuum truck

Pure Electric sweeper vacuum truck

Product Description

Edit

Competitive Plant using Heavy-duty dust Street Cleaning Road Sweeper Vacuum Truck

The Bioclean Vacuum Sweeper Truck is A highly efficient sanitation vehicle is presented. This vehicle is built upon a Dongfeng Class-II chassis and is equipped with components such as a Tier-II engine and its transmission device, a garbage bin, a clean water tank, a cleaning device, a dust suppression system, a dust suction nozzle, a low-pressure flushing system, a high-pressure cleaning system, a hydraulic system, a pneumatic system, and an electrical system.

Characterized by diverse functions, an aesthetically pleasing and elegant appearance, and outstanding performance, this vehicle demonstrates high efficiency, environmental friendliness, and reliability.

Excellent quality
The component configuration is excellent. The hydraulic system adopts an ultra-integrated electromagnetic hydraulic valve group, with a highly integrated structure, neat and aesthetically pleasing layout, and convenient for maintenance. The hydraulic and pneumatic pipelines are reasonably arranged, simple and elegant. The transmission components, hydraulic elements and electrical components all use high-quality imported parts and accessories from renowned manufacturers worldwide, ensuring excellent quality and high reliability.

Excellent quality

The ventilation system is the foundation of the pneumatic conveying system of the vacuum cleaning vehicle. It consists of three major parts: suction nozzle, box body pipeline, and fan. It determines the suction force of the garbage, the loss of air flow, and the power of the system. It is a key part in the design of the vacuum cleaning vehicle.

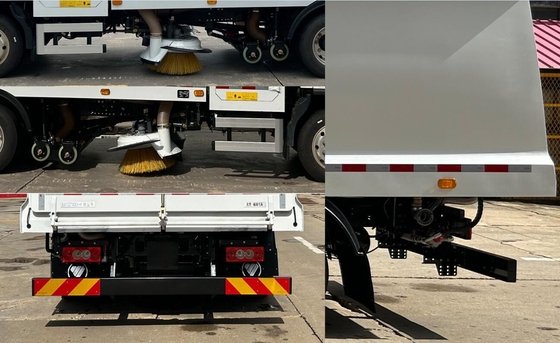

Sweeping discs
The cleaning device is equipped with an automatic obstacle avoidance protection function and an automatic reset function. When the sweeping discs encounter an obstacle, they will automatically retract. After passing the obstacle, they will automatically reset. This function effectively solves the problem of the cleaning device being easily damaged. Moreover, it features a simple structure, convenient and fast installation and usage, a wide range of applications, high work efficiency, and low maintenance costs.

Easy to drive and operate, with low requirements for drivers and operators, enabling quick and easy start-up, saving time and effort.

Good quality steel

Strictly selected good steel, fine craftsmanship, durability, body stability and corrosion resistance.

Pure Electric Severe Dust Street Cleaning Road Sweeper Vacuum Truck Euro 6 Emission Standard 2mm Tank Thickness 0

Pure Electric Severe Dust Street Cleaning Road Sweeper Vacuum Truck Euro 6 Emission Standard 2mm Tank Thickness 1

Pure Electric Severe Dust Street Cleaning Road Sweeper Vacuum Truck Euro 6 Emission Standard 2mm Tank Thickness 2

Company Profiles

Zhejiang Bioclean Machinery Technology Co., Ltd. is a company founded by veterans, integrating ecological environment consulting and design, R&D and manufacturing of environmental sanitation machinery and equipment, urban comprehensive services, integrated investment and operation of environmental sanitation projects technology oriented national high-tech enterprise.

Bioclean Company has been deeply rooted in the industry for over 20 years,carefully crafted the industrial ecological chain of'manufacturing supports service industry, and service industry drives manufacturing industry'.After more than 20 years of deep ploughing in the industry, Baocheng has carefully built an industrial ecological chain of ‘manufacturing industry supporting service industry and service industry driving manufacturing industry’.Devoting herself to the national sanitation industry with the sentiment of a craftsman. with intelligent sanitation equipment and intelligent management platform,to walk at the forefront of the industry.

Pure Electric Severe Dust Street Cleaning Road Sweeper Vacuum Truck Euro 6 Emission Standard 2mm Tank Thickness 3
