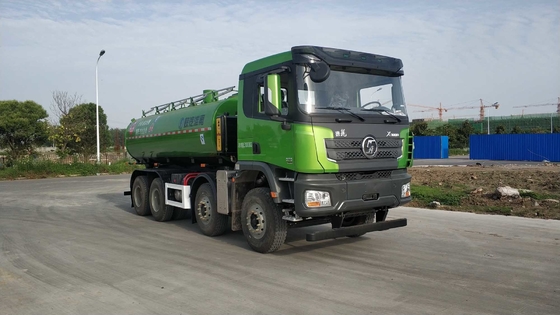

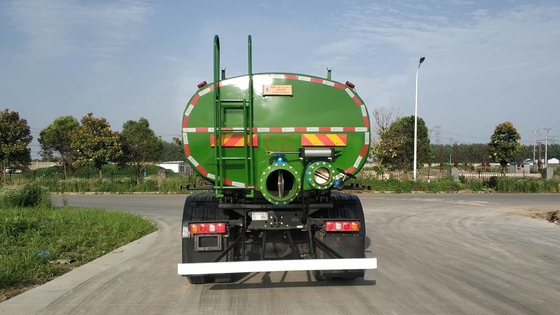

Dump Truck for Liquid Waste Transport 17 Cubic Meters 900 kg/m3 ABS System Rear Dumping Closed Top

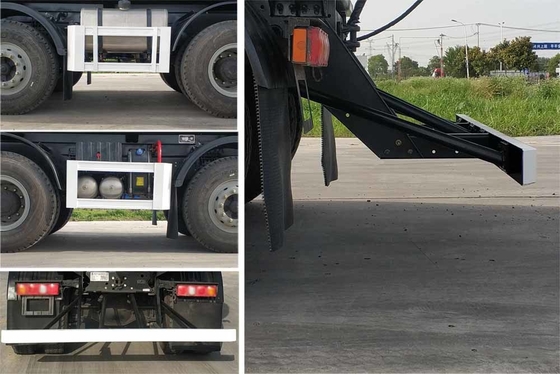

Transport medium: liquid waste, density: 900 kg/cubic meter, total tank capacity: 17 cubic meters, effective tank volume: 16.74 cubic meters, tank external dimensions (length x long axis x short axis) (mm): 5900 x 2320 x 1520, only chassis 1950+2525+1400 wheelbase is selected; Equipped with a driving recorder with satellite positioning function; Using only WP10H375E62 engine, engine net power value: 271kW; The corresponding relationship between engine/fuel consumption value (L/100km) is: WP10H375E62/40.56; The material of the side protection device is T700, and the connection method is bolt connection; The material of the rear protection device is Q345B, and the connection method is bolt connection. The width of the rear protection section (mm) is 120mm × 60mm, and the height of the rear protection above the ground is 460 (mm); The manufacturer and model of ABS system is: Xi'an Zhengchang Electronics Co., Ltd. (ZQFB-V); The self dumping method of the vehicle is rear dumping; The top of the carriage is closed and cannot be opened; This model can be optionally equipped with ETC onboard devices; Install the same series of driver's cab and front lighting fixtures along with the chassis, choose to install no ladder at the rear, choose to open the rear of the tank, choose to install low manhole cover and tank shoulder guard, choose to install front ladder, choose to install reinforcement ribs outside the tank body, and the vehicle uses a rear discharge valve with a diameter of DN350 DN200, Optional muffler shell, optional post-treatment appearance, optional side window appearance, optional air storage cylinder appearance, optional urea filling port protective cover

Product Features

Durable and corrosion-resistant ship type box structure, achieving 100% leak free operation

The entire garbage bin is made of high-strength carbon steel plates welded together, with a beautiful appearance, good stress, and not easily deformed. Whole vehicle



The structural components are cut by laser to improve the strength and durability of the box. And all metal parts are treated with advanced anti rust paint, making the box sturdy, durable, and well sealed. The carriage adopts a complete set of fixtures and fixtures for welding and processing, ensuring the processing accuracy, excellent quality, and good interchangeability of the produced products. The ship type structure avoids the traditional old-fashioned box and the sealing structure at the back, fundamentally solving the problem of secondary pollution during transportation.

Company Profiles

Zhejiang Bioclean Machinery Technology Co., Ltd. is a company founded by veterans, integrating ecological environment consulting and design, R&D and manufacturing of environmental sanitation machinery and equipment, urban comprehensive services, integrated investment and operation of environmental sanitation projects technology oriented national high-tech enterprise.

Bioclean Company has been deeply rooted in the industry for over 20 years,carefully crafted the industrial ecological chain of'manufacturing supports service industry, and service industry drives manufacturing industry'.After more than 20 years of deep ploughing in the industry, Baocheng has carefully built an industrial ecological chain of ‘manufacturing industry supporting service industry and service industry driving manufacturing industry’.Devoting herself to the national sanitation industry with the sentiment of a craftsman. with intelligent sanitation equipment and intelligent management platform,to walk at the forefront of the industry.
