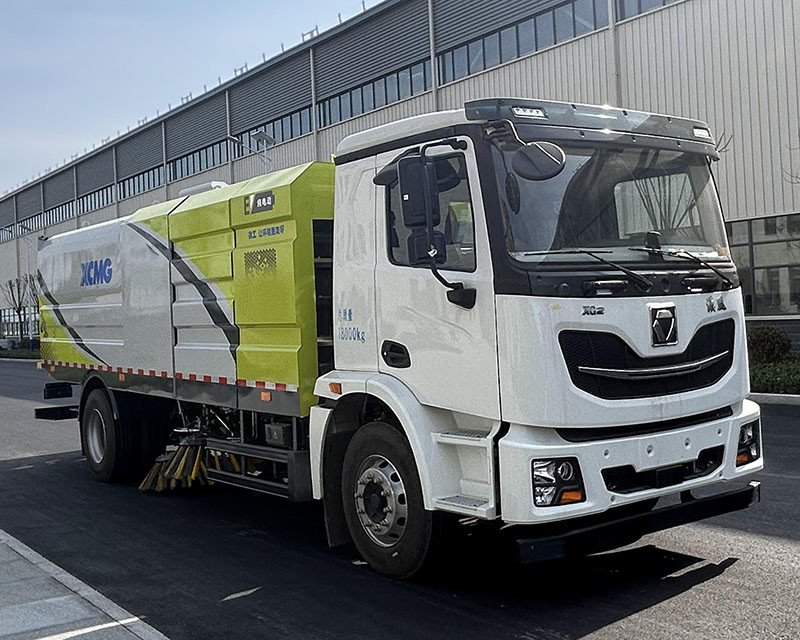

Road Sweeper with Specialized Devices and Guardrails for Safe and Cleaning Operations on Urban Roads and Parks

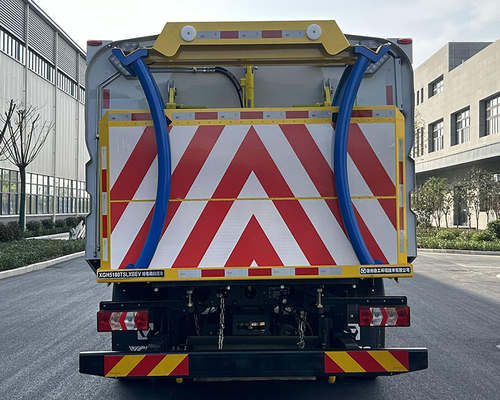

Type of energy storage device: lithium iron phosphate battery, individual production enterprise: Ningde Times New Energy Technology Co., Ltd., assembly production enterprise: Ningde Times New Energy Technology Co., Ltd; Drive motor type: permanent magnet synchronous motor The vehicle's dedicated device consists of a trunk, a cleaning system, a vacuum cleaner, etc. It is mainly used for road cleaning operations on urban roads and parks; Optional cabin design, optional crash pad, optional without crash pad Comes with EM180I logo optional on the chassis, without XG2 or Hanfeng logo The side protection consists of specialized devices and guardrails, with the guardrail material being Q235B and the rear protection material being Q345B, both of which are bolted to the vehicle; The cross-sectional size of the rear protection is 180mm × 60mm, with a ground clearance height of 460mm or 375mm. When equipped without collision pads, the ground clearance height is 360mm or 460mm ABS model: CM4XL-4S/4M; ABS manufacturer: Guangzhou Ruili Kemi Automotive Electronics Co., Ltd The rear of the vehicle is equipped with an electronically controlled work arrow light, which is only used during operation

Product Features

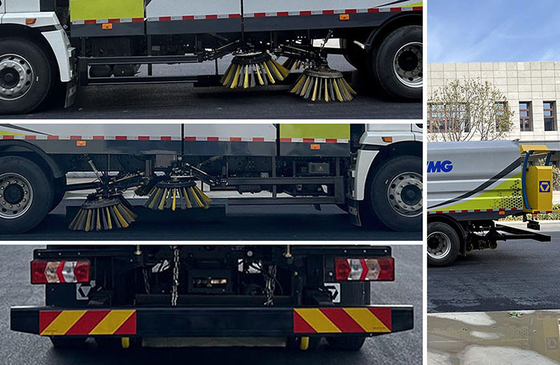

Road sweeper is modified from second class chassis added with the frame, big box, deputy engine, high-pressure fan, sweeping mechanism and other special devices modified, and it can be used for municipal road sweeping. The vehicle sweeping disc placed between the front and rear axles, suction nozzle placed between the rear axle, sweeping disc symmetrically arranged on both sides of the frame, the touchdown pressure hydraulic control, automatic replenishment of taste sweeping hair wear and tear, and in the sweeping disc set up at the sprinkler system to reduce dust.

High cleaning efficiency

Four sweeping discs on both sides combined with the rear suction nozzle, reliably sweeping away all kinds of rubbish on the road, with good sweeping effect to save labour cost.

Large box capacity

There is no need for frequent dumping, and it has the function of water sprinkling and dust reduction in sweeping operation, which makes the overall operation environmentally friendly and has a low impact on the neighbourhood.

It's easy to operate

Easy to drive and operate, with low requirements for drivers and operators, enabling quick and easy start-up, saving time and effort.

Good quality steel

Strictly selected good steel, fine craftsmanship, durability, body stability and corrosion resistance.
