Versatile and Durable Road Sweeper for Municipal Road Maintenance Needs

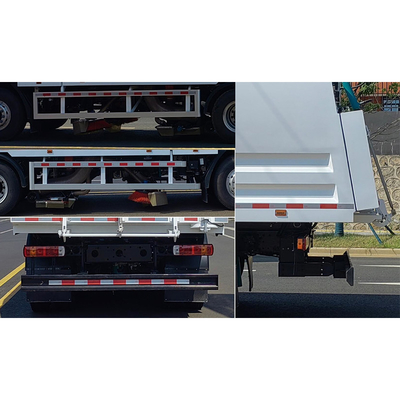

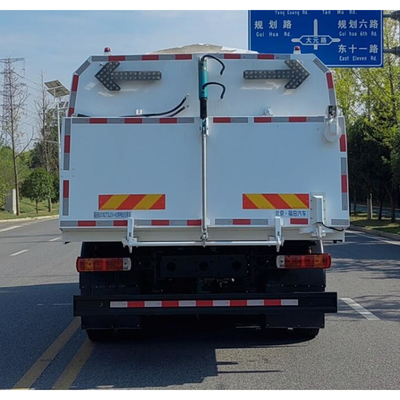

1. The vehicle is equipped with a box and a cleaning device to clean the road surface; 2. The material of the side protection device is aluminum alloy 6061, and the connection method is bolt connection. The material of the rear protection device is Q235A, and the connection method is bolt connection. The cross-sectional size of the rear protection is 180 × 65mm; The ground clearance height is 495mm; 3. Type of energy storage device: lithium iron phosphate battery, individual production enterprise: Ningde Times New Energy Technology Co., Ltd., energy storage device assembly production enterprise: Ningde Times New Energy Technology Co., Ltd., driving motor type: permanent magnet synchronous motor, motor model: FTTB080C; Production enterprise: Beiqi Foton Motor Co., Ltd., rated power: 80kW; Peak power: 160kW; 4. ABS model/manufacturer: ABS-E/WABCO Automotive Control Systems (China) Co., Ltd; Install a driving recorder with satellite positioning function; Optional ETC onboard device with direct power supply. Optional charging port location, front panel and logo can be installed along with the chassis. The rear arrow light is only used during operation

Product Features

Road sweeper is modified from second class chassis added with the frame, big box, deputy engine, high-pressure fan, sweeping mechanism and other special devices modified, and it can be used for municipal road sweeping. The vehicle sweeping disc placed between the front and rear axles, suction nozzle placed between the rear axle, sweeping disc symmetrically arranged on both sides of the frame, the touchdown pressure hydraulic control, automatic replenishment of taste sweeping hair wear and tear, and in the sweeping disc set up at the sprinkler system to reduce dust.

High cleaning efficiency

Four sweeping discs on both sides combined with the rear suction nozzle, reliably sweeping away all kinds of rubbish on the road, with good sweeping effect to save labour cost.

Large box capacity

There is no need for frequent dumping, and it has the function of water sprinkling and dust reduction in sweeping operation, which makes the overall operation environmentally friendly and has a low impact on the neighbourhood.

It's easy to operate

Easy to drive and operate, with low requirements for drivers and operators, enabling quick and easy start-up, saving time and effort.

Good quality steel

Strictly selected good steel, fine craftsmanship, durability, body stability and corrosion resistance.
